WS7M22R0J

Active

Bourns Inc.

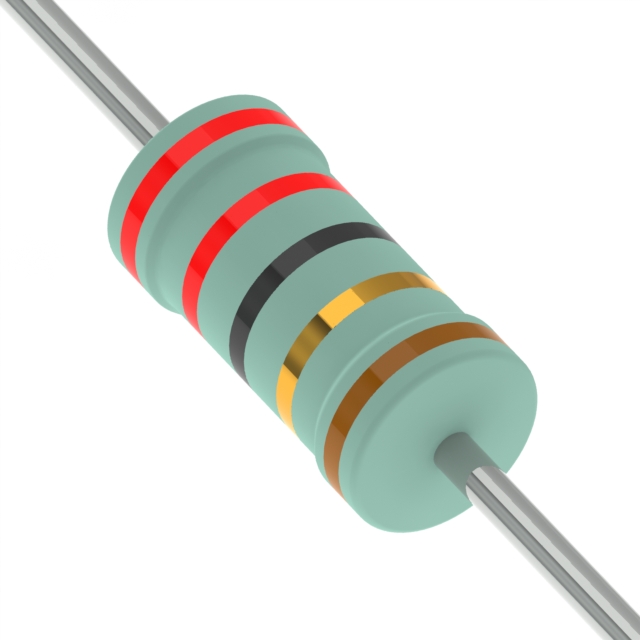

RES 22 OHM 5% 7W AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

RES 22 OHM 5% 7W AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS7M22R0J	WS7M Series

Composition	Wirewound	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	7 W	7 W
Resistance	22 Ohms	22 - 1000 Ohms
Size / Dimension [diameter]	0.335 "	0.335 "
Size / Dimension [diameter]	8.5 mm	8.5 mm
Size / Dimension [x]	24.5 mm	24.5 mm
Size / Dimension [x]	0.965 "	0.965 "
Supplier Device Package	Axial	Axial
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	5 %

RES 22 OHM 5% 7W AXIAL

Part	Resistance	Power (Watts)	Temperature Coefficient	Tolerance	Supplier Device Package	Number of Terminations	Composition	Features	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
Bourns Inc. WS7M22R0J	22 Ohms	7 W	200 ppm/°C	5 %	Axial	2	Wirewound	Flame Retardant Coating, Pulse Withstanding, Safety	0.335 "	24.5 mm	0.965 "	8.5 mm	-55 °C	200 °C	Axial
Bourns Inc. WS7M1001J	1000 Ohms	7 W	200 ppm/°C	5 %	Axial	2	Wirewound	Flame Retardant Coating, Pulse Withstanding, Safety	0.335 "	24.5 mm	0.965 "	8.5 mm	-55 °C	200 °C	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Ohms ±5% 7W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
