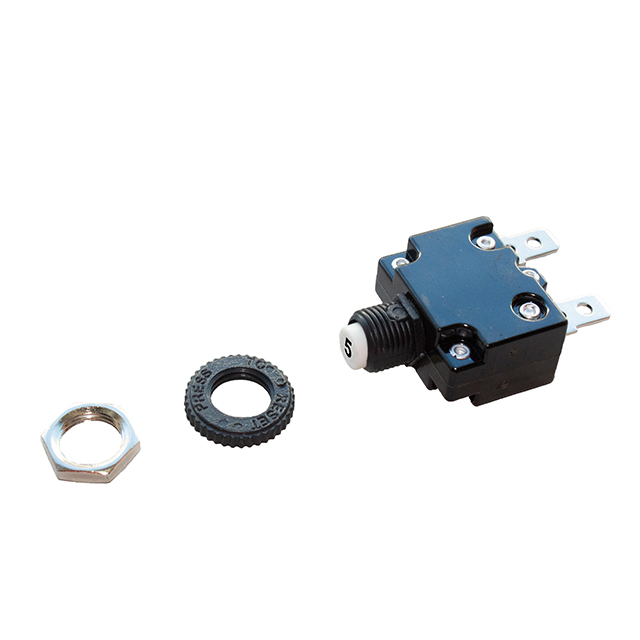

CBW57-PS-5A-5X

Active

OptiFuse

CIR BRKR THRM 5A 250VAC 32VDC

Search across all available documentation for this part.

Active

OptiFuse

CIR BRKR THRM 5A 250VAC 32VDC

Technical Specifications

Parameters and characteristics for this part

Part	Illumination	Actuator Type	Approval Agency	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Number of Poles	Breaker Type
OptiFuse CBW57-PS-10A	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	10 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-PB-15A-5X	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	15 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-EJ-25A	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	25 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-PF-10A-5X	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	10 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-PS-5A-5X	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	5 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-HS-20A-C	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	20 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-ES-6A	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	6 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-PS-15A	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	15 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-PS-5A	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	5 A	250 V	50 VDC	1	Thermal
OptiFuse CBW57-PB-30A-WX	None	Push to Reset	cURus IP 40 SAE J1171 UL 1077 UL 1500	30 A	250 V	50 VDC	1	Thermal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.12

General part information

Circuit Breaker Thermal 5A 250 V AC 50 V DC Push to Reset Panel Mount
