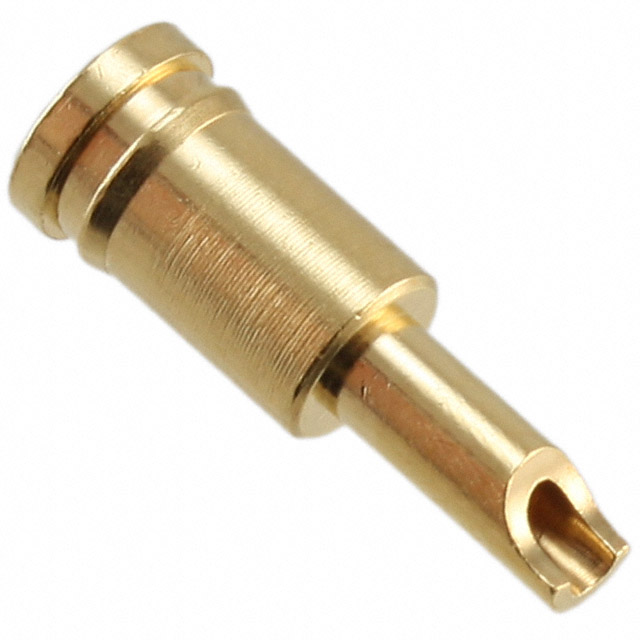

0616-0-18-15-07-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .065-.082 PRESSFIT
Deep-Dive with AI
Search across all available documentation for this part.
0616-0-18-15-07-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .065-.082 PRESSFIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0616-0-18-15-07-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.082 in |
| Accepts Pin Diameter [Max] [diameter] | 2.08 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.065 in |
| Accepts Pin Diameter [Min] [diameter] | 1.65 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 3.99 mm |
| Flange Diameter | 0.157 in |
| Length - Overall [x] | 11.56 mm |
| Length - Overall [x] | 0.455 in |
| Mounting Hole Diameter [diameter] | 0.144 " |
| Mounting Hole Diameter [diameter] | 3.66 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 2.72 mm |
| Pin Hole Diameter [diameter] | 0.107 in |
| Socket Depth | 5.59 mm |
| Socket Depth | 0.22 in |
| Tail Type | Solder Cup |
| Termination | Press-Fit |
0616-0 Series
| Part | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Socket Depth | Socket Depth | Termination | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Operating Temperature [Min] | Operating Temperature [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter | Flange Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.065 in | 0.082 in | 2.08 mm | 1.65 mm | 5.59 mm | 0.22 in | Press-Fit | 11.56 mm | 0.455 in | 0.144 " | 3.66 mm | Solder Cup | -55 °C | 125 °C | 2.72 mm | 0.107 in | Gold | Beryllium Copper | 0.76 Ám | 30 Áin | 3.99 mm | 0.157 in |
Mill-Max Manufacturing Corp. | 0.065 in | 0.082 in | 2.08 mm | 1.65 mm | 5.59 mm | 0.22 in | Press-Fit | 11.56 mm | 0.455 in | 0.144 " | 3.66 mm | Solder Cup | -55 °C | 125 °C | 2.72 mm | 0.107 in | Tin-Lead | Beryllium Copper | 5.08 Ám | 200 Áin | 3.99 mm | 0.157 in |
Mill-Max Manufacturing Corp. | 0.065 in | 0.082 in | 2.08 mm | 1.65 mm | 5.59 mm | 0.22 in | Press-Fit | 11.56 mm | 0.455 in | 0.144 " | 3.66 mm | Solder Cup | -55 °C | 125 °C | 2.72 mm | 0.107 in | Gold | Beryllium Copper | 0.76 Ám | 30 Áin | 3.99 mm | 0.157 in |
Mill-Max Manufacturing Corp. | 0.065 in | 0.082 in | 2.08 mm | 1.65 mm | 5.59 mm | 0.22 in | Press-Fit | 11.56 mm | 0.455 in | 0.144 " | 3.66 mm | Solder Cup | -55 °C | 125 °C | 2.72 mm | 0.107 in | Gold | Beryllium Copper | 0.25 Ám | 10 Áin | 3.99 mm | 0.157 in |
Mill-Max Manufacturing Corp. | 0.065 in | 0.082 in | 2.08 mm | 1.65 mm | 5.59 mm | 0.22 in | Press-Fit | 11.56 mm | 0.455 in | 0.144 " | 3.66 mm | Solder Cup | -55 °C | 125 °C | 2.72 mm | 0.107 in | Gold | Beryllium Copper | 0.25 Ám | 10 Áin | 3.99 mm | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.57 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.31 | |||
| 50 | $ 1.28 | |||
| 100 | $ 1.22 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.87 | |||
| 2500 | $ 0.81 | |||
Description
General part information
0616-0 Series
Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) Solder Cup Press-Fit
