BB25AH Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Current Rating	Features	Mounting Type	Actuator Type	Type	Actuator Marking	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function

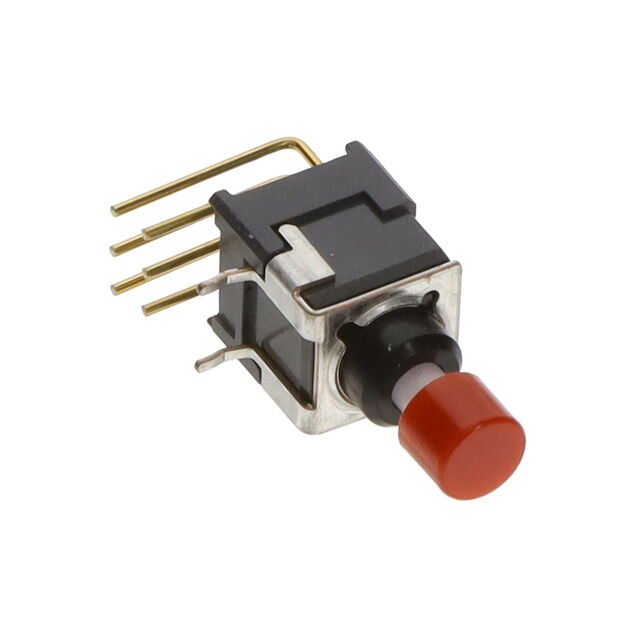

NKK Switches BB25AH-FC	50000	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Red	28 V	28 V	PC Pin	85 °C	-30 °C	On-Mom
NKK Switches BB25AH-HC	50000	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Red	28 V	28 V	PC Pin	85 °C	-30 °C	On-Mom
NKK Switches BB25AH-FA	50000	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Black	28 V	28 V	PC Pin	85 °C	-30 °C	On-Mom
NKK Switches BB25AH-FB	50000	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	White	28 V	28 V	PC Pin	85 °C	-30 °C	On-Mom
NKK Switches BB25AH-HA	50000	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Black	28 V	28 V	PC Pin	85 °C	-30 °C	On-Mom
