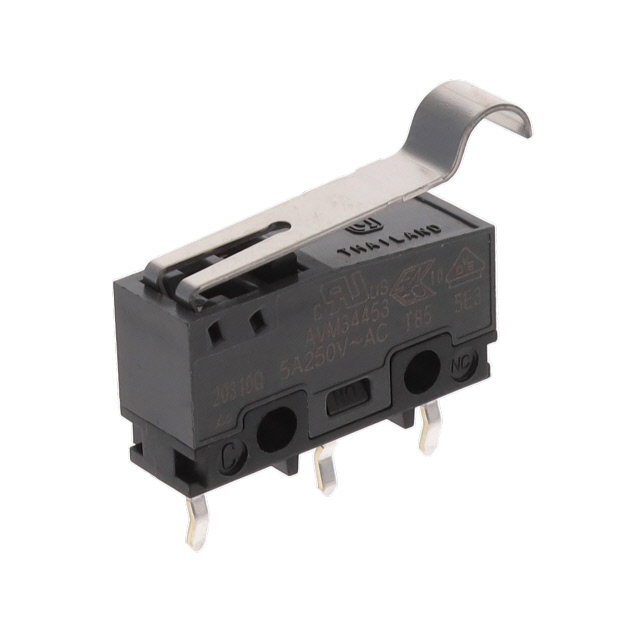

AVM34453
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AVM34453
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AVM34453 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.8 mm |
| Differential Travel | 0.031 " |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 55 gf |
| Operating Position | 11.65 mm |
| Operating Position | 0.459 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.047 " |
| Overtravel | 1.2 mm |
| Pretravel | 0.11 in |
| Pretravel | 2.8 mm |
| Release Force | 3.467 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.42 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.28 | |||
| 40 | $ 1.23 | |||
| 100 | $ 1.18 | |||
| 300 | $ 0.94 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.83 | |||
| 4900 | $ 0.75 | |||
Description
General part information
AVM344 Series
Switch SPDT Through Hole
