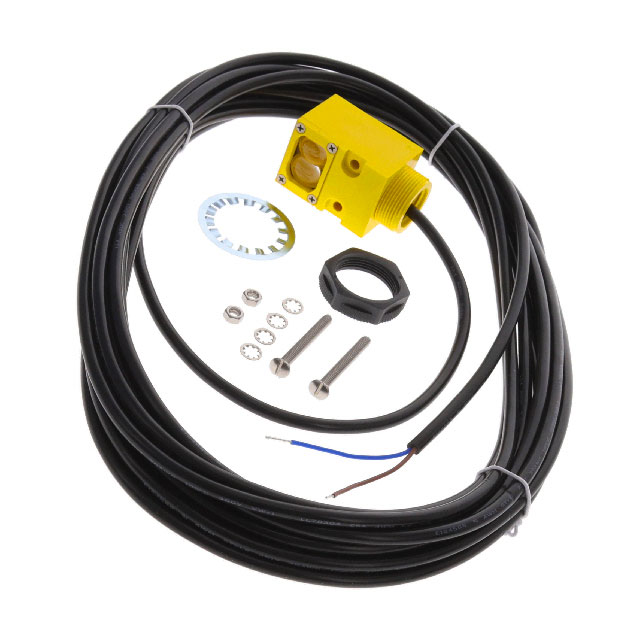

SMA91E W/30

Active

BANNER ENGINEERING

RANGE: 60 M; INPUT: 10-250V AC/D

Search across all available documentation for this part.

Active

BANNER ENGINEERING

RANGE: 60 M; INPUT: 10-250V AC/D

Technical Specifications

Parameters and characteristics for this part

Specification	SMA91E W/30

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable with Connector
Ingress Protection	NEMA 13, NEMA 4, NEMA 12, NEMA 3S, NEMA 2, NEMA 4X, NEMA 6P, IEC IP66, NEMA 1, NEMA 6, NEMA 3
Light Source	Infrared
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Response Time	4 ms
Sensing Distance	60 m
Sensing Distance	196.85 ft
Sensing Method	Through-Beam
Voltage - Supply [Max]	250 VAC, 250 V
Voltage - Supply [Min]	10 VDC, 10 VAC

Part	Ingress Protection	Sensing Method	Response Time	Connection Method	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length
BANNER ENGINEERING SMA91E W/30	IEC IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Through-Beam	4 ms	Cable with Connector	Infrared	-20 C	70 °C	60 m	196.85 ft	10 VDC 10 VAC	250 VAC 250 V	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 253.00

General part information

Through-Beam Optical Sensor 196.85' (60m)
