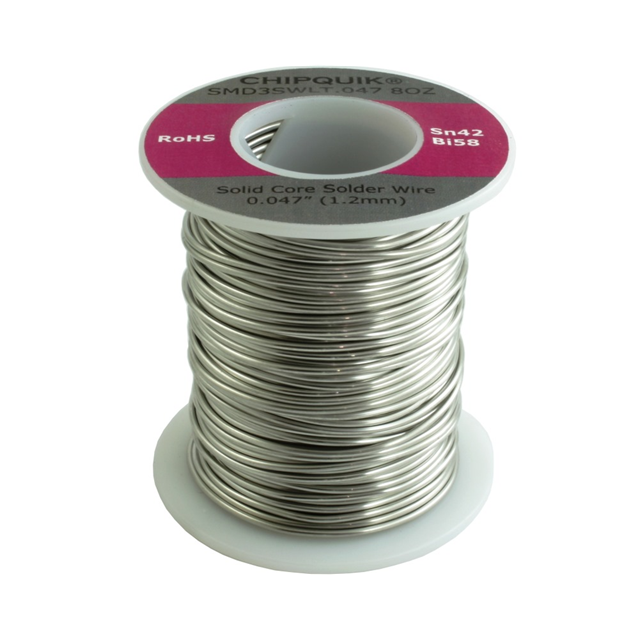

SMD3SWLT.047 8OZ

Active

Chip Quik Inc.

SOLDER WIRE SN42/BI58 .047" 8OZ

Search across all available documentation for this part.

Active

Chip Quik Inc.

SOLDER WIRE SN42/BI58 .047" 8OZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lead Free Wire Solder Bi58Sn42 (58/42) Spool, 8 oz (227g), 1/2 lb

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SMD3SWLT.047 8OZ	SMD3S Series

Composition	Bi58Sn42 (58/42)	Bi58Sn42 (58/42), Sn62Pb36Ag2 (62/36/2)
Diameter [diameter]	1.19 mm	1.02 - 1.19 mm
Diameter [diameter]	0.047 in	0.04 - 0.047 in
Flux Type	-	No-Clean, Rosin Activated (RA), Water Soluble, No-Clean
Form	Spool	Spool
Form	8 oz, 0.5 lb	0.5 - 8 oz
Form	227 g	0.35 - 227 g
Form	-	10 g
Melting Point [custom]	138 °C	138 - 179 °C
Melting Point [custom]	280 °F	280 - 354 °F
Process	-	Leaded
Type	Wire Solder	Wire Solder

SOLDER WIRE SN42/BI58 .047" 4OZ

Part	Composition	Diameter [diameter]	Diameter [diameter]	Type	Melting Point [custom]	Melting Point [custom]	Form	Form	Form	Form	Flux Type	Process
Chip Quik Inc. SMD3SWLT.047 4OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	4 oz	113.4 g
Chip Quik Inc. SMD3SWLT.040 10G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool		0.35 oz	10 g	No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD3SWLT.047 8OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	0.5 lb, 8 oz	227 g
Chip Quik Inc. SMD3SW.031 1OZ	Sn62Pb36Ag2 (62/36/2)			Wire Solder	179 °C	354 °F	Spool	1 oz	28.35 g		No-Clean, Water Soluble	Leaded
Chip Quik Inc. SMD3SWLT.047 1OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	1 oz	28.35 g
Chip Quik Inc. SMD3SWLT.047 2OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	2 oz	56.7 g
Chip Quik Inc. SMD3SWLT.040 50G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool	1.8 oz	50 g		No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD3SWLT.040 20G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool	0.7 oz	20 g		No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD3SWLT.040 100G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool	3.53 oz	100 g		No-Clean, Rosin Activated (RA)
