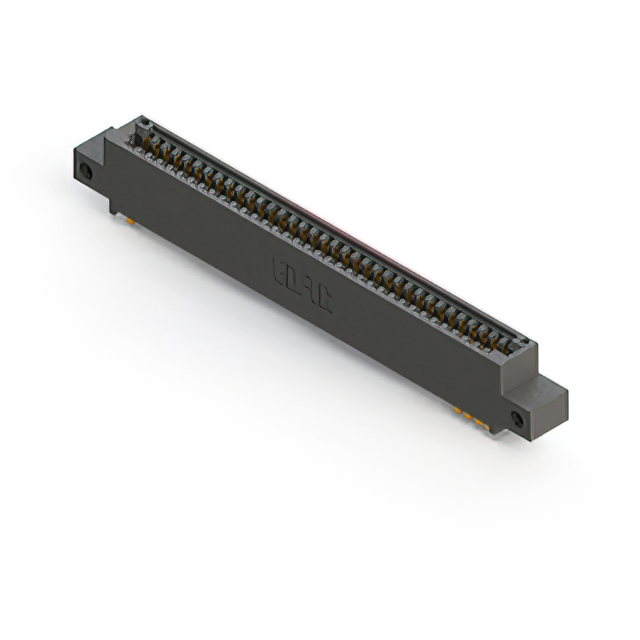

895-070-544-512

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-070-544-512

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-070-544-512

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	70
Number of Positions/Bay/Row [custom]	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

895-070 Series

...

Part	Features	Material - Insulation	Contact Finish	Contact Material	Card Type	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Read Out	Termination Rows	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Mounting Type	Flange Feature	Flange Feature
EDAC Inc. 895-070-556-212	Card Extender	Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	Board Edge Straddle Mount
EDAC Inc. 895-070-555-803	Card Extender	Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Female	Board Edge Straddle Mount
EDAC Inc. 895-070-558-807		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder		M3 Threaded Insert Top Mount Opening		Female	Through Hole Right Angle
EDAC Inc. 895-070-524-112		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Single Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	70	Single	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	Through Hole
EDAC Inc. 895-070-500-804		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder Eyelet(s)	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Female	Through Hole
EDAC Inc. 895-070-520-808		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder		4-40 Threaded Insert Top Mount Opening		Female	Through Hole
EDAC Inc. 895-070-544-112		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Single Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	70	Single	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Wire Wrap	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	Through Hole
EDAC Inc. 895-070-524-101		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Single Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	70	Single	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder				Female	Through Hole
EDAC Inc. 895-070-544-512		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Wire Wrap		Side Mount Opening Unthreaded		Female	Through Hole	3.25 mm	0.128 in
EDAC Inc. 895-070-520-503		Polyphenylene Sulfide (PPS)	Gold	Copper Alloy	Non Specified - Dual Edge	Black	70	10 Áin	0.25 Ám	2.54 mm	0.1 in	125 °C	-40 °C	35	Dual	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Solder	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Female	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 86.58
Newark	Each	1	$ 103.91
		100	$ 68.86
		250	$ 59.59
		500	$ 54.95
		1000	$ 47.75

Description

General part information

895-070 Series

70 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
