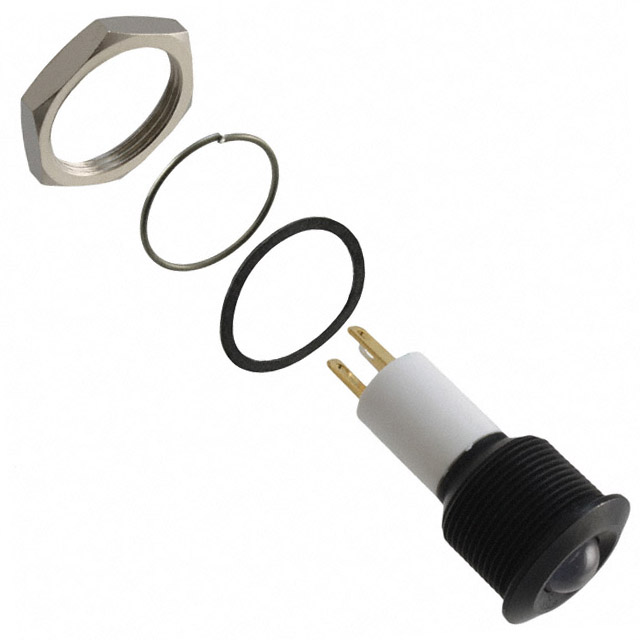

Q19P1BZZRYG24E
ActiveAPEM
INDICATOR 24V 19MM PROM R/Y/G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q19P1BZZRYG24E
ActiveAPEM
INDICATOR 24V 19MM PROM R/Y/G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q19P1BZZRYG24E |
|---|---|
| Current | 20mA Green, 20mA Yellow, 20mA Red |
| Ingress Protection | IP67 |
| Lamp Color | Green, Yellow, Red |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 80 mcd, 50 mcd, 50 mcd |
| Panel Cutout Dimensions [x] | 0.75 " |
| Panel Cutout Dimensions [x] | 19.05 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 24V Yellow, 24V Green, 24V Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.54 | |
| 25 | $ 23.11 | |||
| 100 | $ 21.30 | |||
| 500 | $ 19.84 | |||
Description
General part information
Q19P1BZZRYG Series
LED Panel Indicator Green, Red, Yellow Diffused 60° 24V Green, 24V Red, 24V Yellow 20mA Green, 20mA Red, 20mA Yellow Quick Connect - 0.110" (2.8mm)
