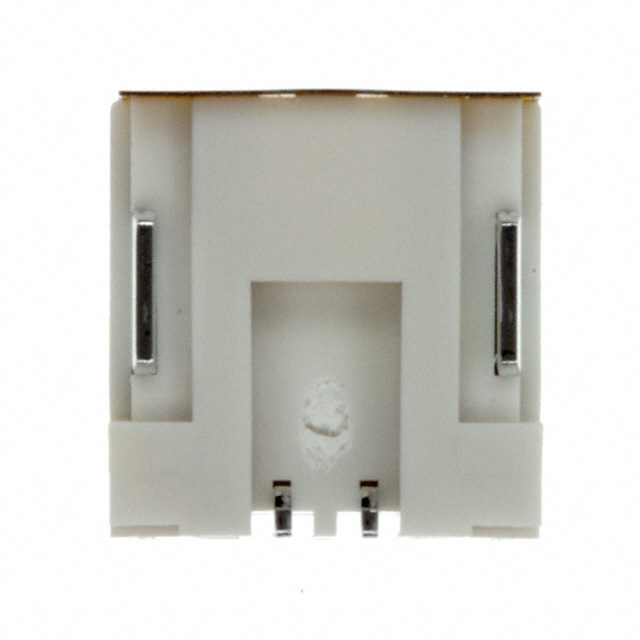

BM02B-ZESS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM02B-ZESS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Insulation Material	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Contact Material	Number of Positions	Connector Type	Insulation Color	Contact Shape	Contact Finish - Post	Features	Fastening Type	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Termination	Contact Type	Style	Mated Stacking Heights	Shrouding
JST Sales America Inc. BM02B-ZESS-TBT	Nylon Polyamide (PA)	0.295 in	7.5 mm	2 A	Surface Mount	Copper Alloy	2	Header	Natural	Rectangular	Tin	Pick and Place Solder Retention	Locking Ramp	1	100 V	-25 °C	85 °C	UL94 V-0	All	Solder	Outer Shroud Contact	Board to Cable/Wire	9.4 mm	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 2 position 0.059" (1.50mm)
