0008650815
ActiveMolex

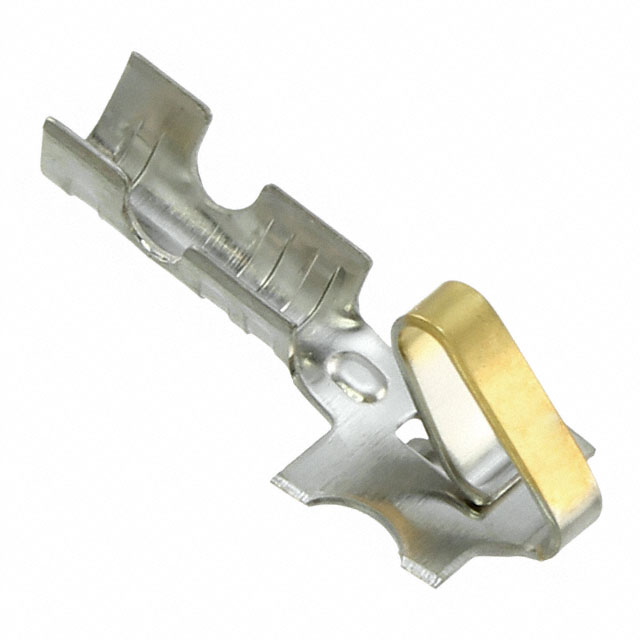

CONN 22-30AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0008650815
ActiveMolex
CONN 22-30AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0008650815 | 000865 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 15 µin | 15 - 100 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 2.54 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Non-Gendered | Non-Gendered |
| Wire Gauge [Max] | 30 AWG | 22 - 30 AWG |
| Wire Gauge [Min] | 22 AWG | 17.5 - 22 AWG |
000865 Series
CONN 22-30AWG CRIMP GOLD
| Part | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|
Molex 0008650814 | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex 0008650815 | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex 0008650817 | Crimp | 50 µin | 1.27 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex 0008650813 | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex 0008650128 | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 22 AWG | 17.5 AWG |
Molex 0008650805 | Crimp | 100 µin | 2.54 µm | Non-Gendered | Tin | 30 AWG | 22 AWG |
Molex 0008650105 | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex 0008650811 | Crimp | 30 Áin | 0.76 Ám | Non-Gendered | Gold | 30 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.07 | ||
Description
General part information
000865 Series
Non-Gendered Contact Gold 22-30 AWG Crimp
Documents
Technical documentation and resources
