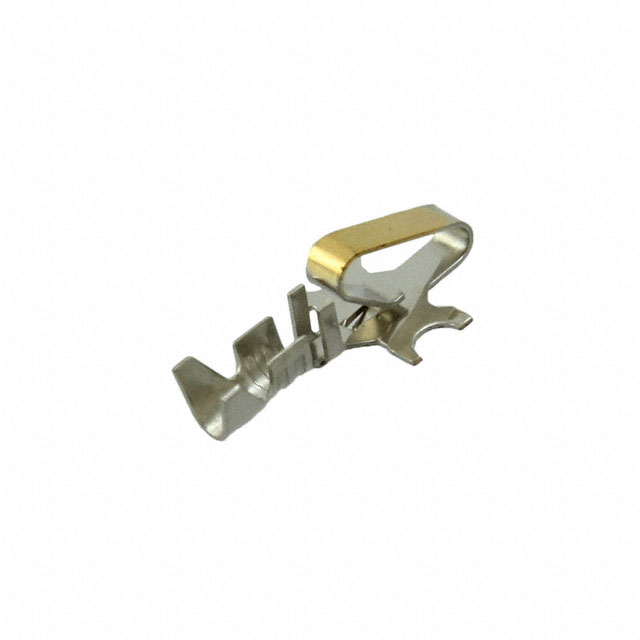

0008650128

Active

Molex

CONN 18-22AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Molex

CONN 18-22AWG CRIMP GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Gendered Contact Gold 18-22 AWG Crimp

Technical documentation and resources

No documents available

Part	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]
Molex 0008650814	Crimp	15 µin	0.38 µm	Non-Gendered	Gold	30 AWG	22 AWG
Molex 0008650815	Crimp	15 µin	0.38 µm	Non-Gendered	Gold	30 AWG	22 AWG
Molex 0008650817	Crimp	50 µin	1.27 µm	Non-Gendered	Gold	30 AWG	22 AWG
Molex 0008650813	Crimp	15 µin	0.38 µm	Non-Gendered	Gold	30 AWG	22 AWG
Molex 0008650128	Crimp	15 µin	0.38 µm	Non-Gendered	Gold	22 AWG	17.5 AWG
Molex 0008650805	Crimp	100 µin	2.54 µm	Non-Gendered	Tin	30 AWG	22 AWG
Molex 0008650105	Crimp	15 µin	0.38 µm	Non-Gendered	Gold	30 AWG	22 AWG
Molex 0008650811	Crimp	30 Áin	0.76 Ám	Non-Gendered	Gold	30 AWG	22 AWG
