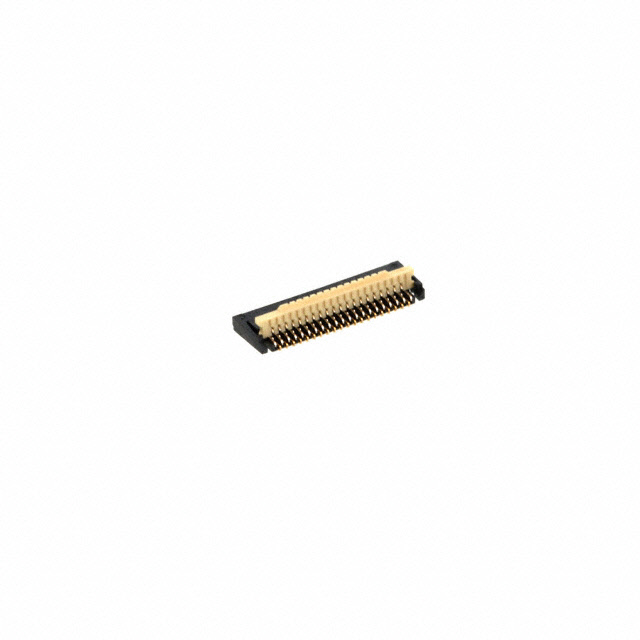

AYF214135A

Panasonic Electric Works

CONN FPC 41POS 0.2MM R/A

Search across all available documentation for this part.

Panasonic Electric Works

CONN FPC 41POS 0.2MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF214135A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	200 mA
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Backlock, Rotary Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	41
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 mm
Pitch [x]	0.008 in
Termination	Solder
Voltage Rating	50 V

Part	Actuator Material	Voltage Rating	Flat Flex Type	Cable End Type	Termination	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Connector/Contact Type	Mating Cycles	Current Rating (Amps)	FFC, FCB Thickness	Locking Feature	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Number of Positions	Contact Material	Material Flammability Rating	Height Above Board	Height Above Board
Panasonic Electric Works AYF214135A	Liquid Crystal Polymer (LCP)	50 V	FPC	Tapered	Solder	Surface Mount Right Angle	Gold	0.2 mm	0.008 in	Contacts Top and Bottom	20	200 mA	0.2 mm	Backlock Rotary Lock	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	41	Copper Alloy	UL94 V-0	0.88 mm	0.035 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

41 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle
