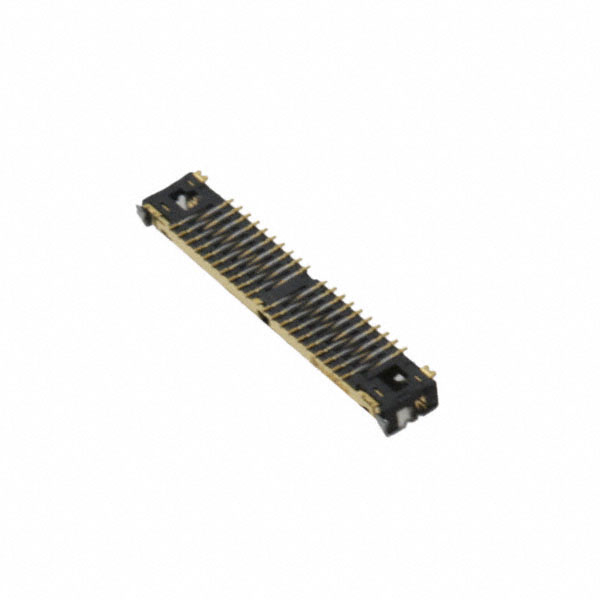

FI-JP40S-VF10-R300

Obsolete

JAE Electronics

CONN RCPT 40POS 0.01 GOLD SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 40POS 0.01 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-JP40S-VF10-R300

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Fastening Type	Friction Lock
Features	Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	0.042 in
Insulation Height	1.06 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.01 in
Pitch - Mating	0.25 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions	Style	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Features	Insulation Material	Fastening Type	Mounting Type	Contact Finish - Mating	Termination	Contact Type	Connector Type	Insulation Color	Number of Rows	Material Flammability Rating
JAE Electronics FI-JP40S-VF10-R300	40	Board to Cable/Wire	Copper Alloy	0.01 in	0.25 mm	0.042 in	1.06 mm	All	Pick and Place Solder Retention	Plastic	Friction Lock	Surface Mount	Gold	Solder	Non-Gendered	Receptacle	Black	1	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Receptacle Connector 0.010" (0.25mm) Surface Mount Gold
