Q-1S02R0008072i

Active

Amphenol Custom Cable

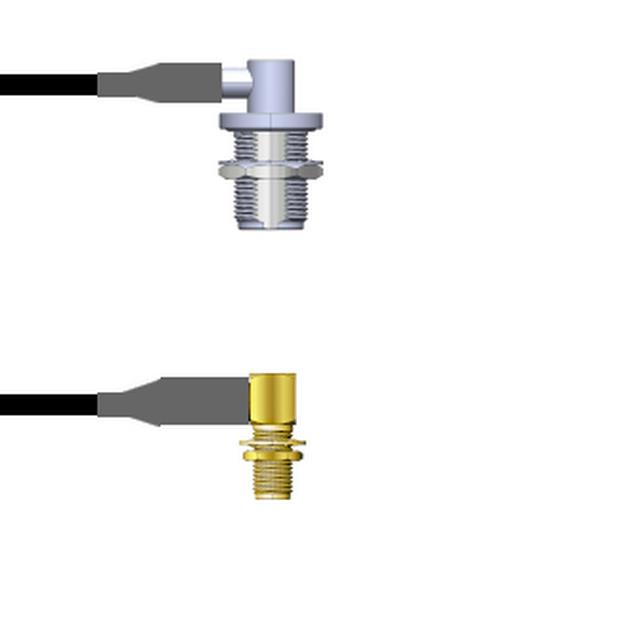

CBL ASSY SMA-NTYPE JACK-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S02R0008072i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S02R0008072i

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1S02R0 Series

Part	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Feature	2nd Connector Mounting Feature	2nd Contact Gender	Color	Overall Impedance	Cable Type	Style	2nd Connector	1st Connector Mounting Type	Length	Length	Frequency - Max [Max]	1st Contact Gender	Features	Length
Amphenol Custom Cable Q-1S02R0008024i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	24 "	609.6 mm	6000 MHz	Female	Shielded
Amphenol Custom Cable Q-1S02R0008072i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	72 in	1.8 m	6000 MHz	Female	Shielded	6 ft
Amphenol Custom Cable Q-1S02R0008108i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	108 in	2.7 m	6000 MHz	Female	Shielded	9 ft
Amphenol Custom Cable Q-1S02R0008012i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	12 "	304.8 mm	6000 MHz	Female	Shielded
Amphenol Custom Cable Q-1S02R0008001M	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	39.4 in	1 m	6000 MHz	Female	Shielded	3.3 ft
Amphenol Custom Cable Q-1S02R0008036i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	36 in	91.44 cm	6000 MHz	Female	Shielded
Amphenol Custom Cable Q-1S02R0008048i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	48 in	1200 mm	6000 MHz	Female	Shielded	4 ft
Amphenol Custom Cable Q-1S02R0008009i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	9 "	228.6 mm	6000 MHz	Female	Shielded
Amphenol Custom Cable Q-1S02R0008084i	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	84 in	2.1 m	6000 MHz	Female	Shielded	7 ft
Amphenol Custom Cable Q-1S02R00080.5M	Panel Mount	Right Angle SMA Jack	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	Female	Black	50 Ohms	RG-58	SMA to N-Type	N-Type Jack Right Angle	Panel Mount	19.69 "	50 cm	6000 MHz	Female	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 207.37
		25	$ 203.40
		50	$ 199.44
		100	$ 195.47
		250	$ 191.51

Description

General part information

Q-1S02R0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
