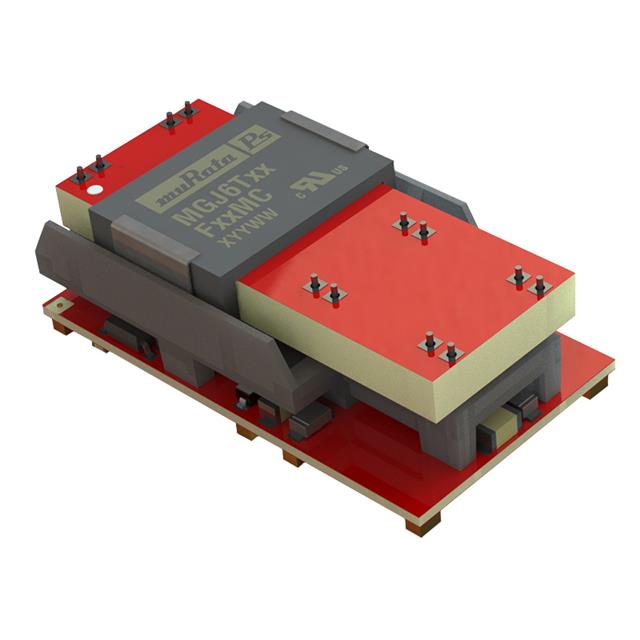

MGJ6T12F24MC-R7

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 24V 24V 6W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 24V 24V 6W

Technical Specifications

Parameters and characteristics commom to parts in this series

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 6 W, 3 OUTPUT, 15 V

Part	Voltage - Output 1	Package / Case	Applications	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 2	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)	Features	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Efficiency	Voltage - Output 3
Murata Power Solutions Inc. MGJ6T12150505MC-R7	15 V	7-SMD Module	ITE (Commercial), Medical	Surface Mount	9 V	18 V	240 mA	240 mA	-10 V	Isolated Module	31.2 mm	0.58 "	14.7 mm	22.6 mm	0.89 in	1.23 "	2	-40 °C	105 ░C	5.2 kV	6 W	SCP, UVLO
Murata Power Solutions Inc. MGJ6T12F24MC-R7	24 V	9-SMD Module	ITE (Commercial), Medical	Surface Mount	9 V	18 V			24 V	Isolated Module	41.5 mm	0.56 "	14.1 mm	22.6 mm	0.89 in	1.63 "	3	-40 °C	105 ░C	5.2 kV	6 W	SCP, UVLO	125 mA	62.5 mA	62.5 mA	84 %	24 V
Murata Power Solutions Inc. MGJ6T12F24MC-R13	24 V	9-SMD Module	ITE (Commercial), Medical	Surface Mount	9 V	18 V			24 V	Isolated Module	41.5 mm	0.56 "	14.1 mm	22.6 mm	0.89 in	1.63 "	3	-40 °C	105 ░C	5.2 kV	6 W	SCP, UVLO	125 mA	62.5 mA	62.5 mA	84 %	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 3 Output 24V 24V 24V 62.5mA, 62.5mA, 125mA 9V - 18V Input
