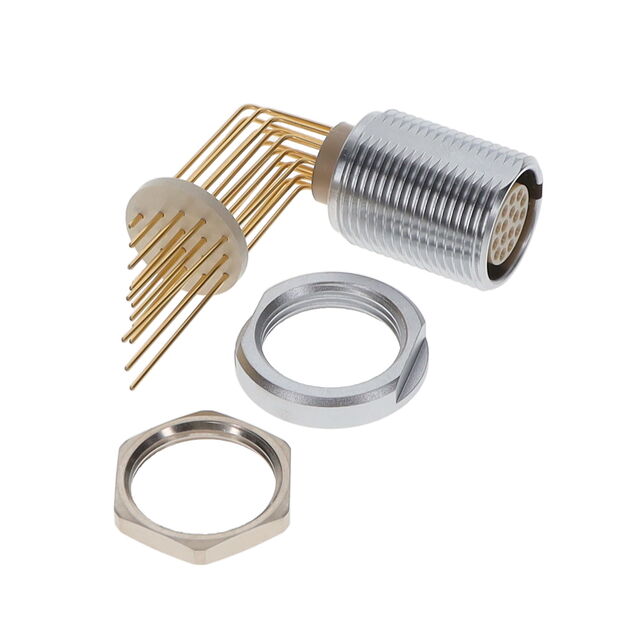

G52L0C-P16QF00-A000
ActiveODU
ODU MINI-SNAP RECEPT, STY 5, SZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G52L0C-P16QF00-A000
ActiveODU
ODU MINI-SNAP RECEPT, STY 5, SZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G52L0C-P16QF00-A000 |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 6 A |
| Fastening Type | Push-Pull |
| Features | Ground |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front or Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 16 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 0 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 2 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 366 V |
G52L0C-P Series
| Part | Fastening Type | Number of Positions | Voltage Rating | Shell Finish | Color | Primary Material | Contact Finish - Mating | Mounting Feature | Shell Size - Insert | Applications | Current Rating (Amps) | Shell Material | Insert Material | Orientation | Features | Contact Material | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Ingress Protection | Mounting Type | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | 16 | 300 VDC | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | ||||
Push-Pull | 500 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 12 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Panel Mount Through Hole | Solder | 6 | ||
Push-Pull | 450 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 6 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Panel Mount Through Hole | Solder | 12 | ||
Push-Pull | 16 | 366 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 6 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Panel Mount Through Hole | Solder | ||
Push-Pull | 366 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | 14 | ||||
Push-Pull | 650 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 21 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Crimp | ||||
Push-Pull | 800 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 16 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Panel Mount Through Hole | Solder | |||
Push-Pull | 450 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 6 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Panel Mount Through Hole | Solder | 12 | ||
Push-Pull | 366 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Crimp | 14 | |||
Push-Pull | 400 V | Chrome over Nickel | Silver | Metal | Gold | Bulkhead - Front or Rear Side Nut | 2 | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Brass | Polyetheretherketone (PEEK) | 0 | Ground | Brass | Unshielded | -40 °C | 120 °C | Receptacle Female Sockets | IP50 | Crimp | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 85.52 | |
Description
General part information
G52L0C-P Series
16 Position Circular Connector Receptacle, Female Sockets Solder
