PKG.M1.4SL.LJ

Active

LEMO

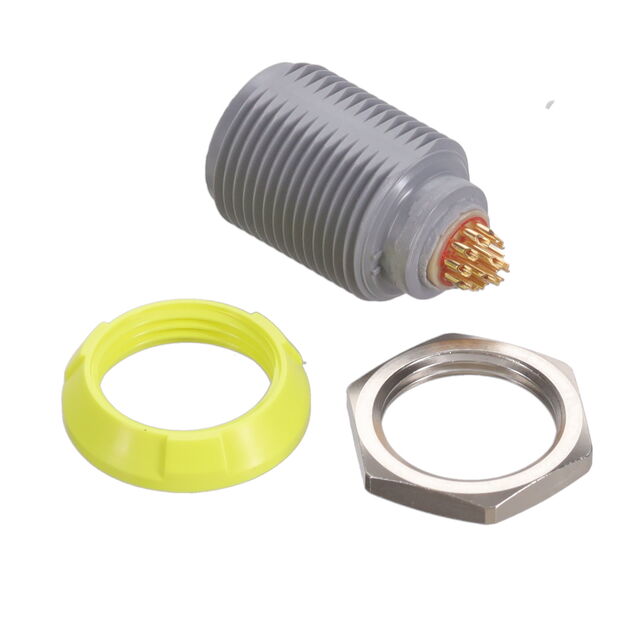

CONN RCPT FMALE 14P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKG.M1.4SL.LJ

Active

LEMO

CONN RCPT FMALE 14P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.09
		10	$ 37.73
		25	$ 36.10
		50	$ 34.94
		100	$ 33.77
		250	$ 31.91

Description

General part information

PKG.M1 Series

14 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKG.M1.4SL.LJ	PKG.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray, Yellow	Gray, Blue, Black, Yellow, Red, White, Green
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Shape	-	Circular
Contact Type	-	Crimp, Solder Cup
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Housing Color	-	Black, Gray, Blue
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut, Bulkhead - Front or Rear Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Note	-	Contacts Not Included
Number of Positions	14	10 - 14
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M14	M10, M14
Shielding	Unshielded	Unshielded
Termination	-	Solder
Type	-	For Female Sockets

PKG.M1 Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Orientation	Insert Material	Ingress Protection	Color	Current Rating (Amps)	Contact Finish - Mating	Shielding	Applications	Shell Material	Connector Type	Shell Size - Insert	Fastening Type	Primary Material	Mounting Feature	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Contact Shape	Housing Color	Note	Type	Contact Type
LEMO PKG.M1.0GL.LA	G	Polyetheretherketone (PEEK)	IP50	Blue, Gray	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	150 °C	-50 °C
LEMO PKG.M1.0SL.NA	G	Polyetheretherketone (PEEK)	IP50	Blue, Gray	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetherimide (PEI)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	170 °C	-50 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M1.0TL.LN	G	Polyetheretherketone (PEEK)	IP50	Black	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetherimide (PEI)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	170 °C	-50 °C
LEMO PKG.M1.4SL.YN	G	Polyetheretherketone (PEEK)	IP50				Unshielded		Polyetherimide (PEI)	Receptacle Housing	M14	Detent Lock, Push-Pull		Bulkhead - Front or Rear Side Nut	14	170 °C	-50 °C			Circular	Black, Gray	Contacts Not Included	For Female Sockets	Crimp
LEMO PKG.M1.4SL.YG	G	Polyetheretherketone (PEEK)	IP50				Unshielded		Polyetherimide (PEI)	Receptacle Housing	M14	Detent Lock, Push-Pull		Bulkhead - Front or Rear Side Nut	14	170 °C	-50 °C			Circular	Gray	Contacts Not Included	For Female Sockets	Crimp
LEMO PKG.M1.0SL.NZ	G	Polyetheretherketone (PEEK)	IP50	Gray	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetherimide (PEI)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	170 °C	-50 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M1.0GL.NG	G	Polyetheretherketone (PEEK)	IP50	Gray	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	150 °C	-50 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M1.0GL.VG	G	Polyetheretherketone (PEEK)	IP50	Gray	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	150 °C	-50 °C	Panel Mount, Right Angle, Through Hole	Solder
LEMO PKG.M1.0SL.NG	G	Polyetheretherketone (PEEK)	IP50	Gray	3 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetherimide (PEI)	Receptacle, Female Sockets	M10	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	10	170 °C	-50 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M1.4SL.LJ	G	Polyetheretherketone (PEEK)	IP50	Gray, Yellow	2 A	Gold	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetherimide (PEI)	Receptacle, Female Sockets	M14	Detent Lock, Push-Pull	Plastic	Front and Rear Side Nut	14	170 °C	-50 °C
