MAX22518 Series

Part	Technology	Pulse Width Distortion (Max)	Package Length	Package Name	Package Width	Mounting Type	Isolated Power	Voltage - Isolation	Data Rate	Type	Channel Type	Rise Time (Typ)	Fall Time (Typ)	Operating Temperature (Max)	Operating Temperature (Min)	Propagation Delay tpHL (Max)	Propagation Delay tpLH (Max)	Common Mode Transient Immunity (Typ)	Number of Channels	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Inputs - Side 2	Inputs - Side 1	Supplied Contents	Contents	Primary Attributes	Function	Utilized IC / Part	Secondary Attributes
Analog Devices Inc./Maxim Integrated MAX22518AWA+T	Capacitive Coupling	20 ns	0.209 in	8-SOIC	5.3 mm	Surface Mount	No	3500 Vrms	1 Mbps	General Purpose	Unidirectional	20 ns	20 ns	125 °C	-40 °C	130 ns	130 ns	50 kV/µs	2	5.5 V	3 V	0	2
Analog Devices Inc./Maxim Integrated MAX22518AWA+	Capacitive Coupling	20 ns	0.209 in	8-SOIC	5.3 mm	Surface Mount	No	3500 Vrms	1 Mbps	General Purpose	Unidirectional	20 ns	20 ns	125 °C	-40 °C	130 ns	130 ns	50 kV/µs	2	5.5 V	3 V	0	2

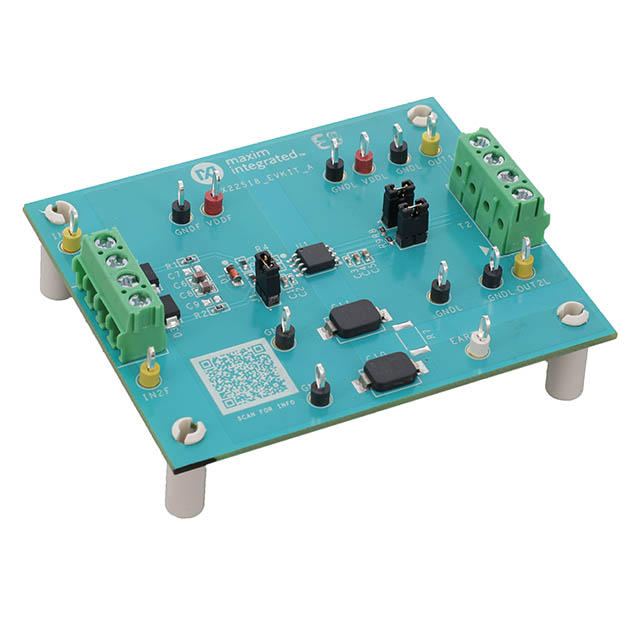

Analog Devices Inc./Maxim Integrated MAX22518EVKIT#										Interface														Board(s)	Board	2-Channel (Dual)	Digital Isolator	MAX22518	Push-Pull Output
