396-017-521-108
ActiveEDAC Inc.

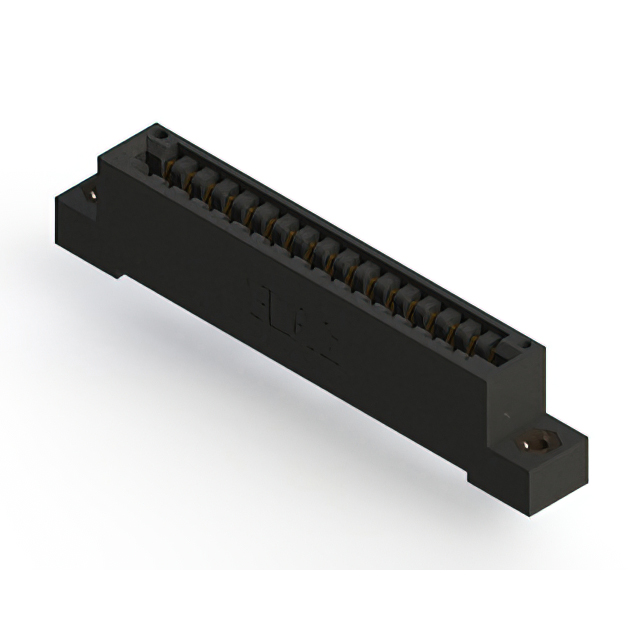

CONN EDGE SGL FMALE 17POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-017-521-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 17POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-017-521-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
396-017 Series
| Part | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Pitch [x] | Pitch [x] | Termination Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Gender | Contact Finish | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Material | Mounting Type | Card Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Wire Wrap | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | Solder | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | ||||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | |||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Solder Wire Wrap | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole Right Angle | Non Specified - Single Edge | Card Guides | ||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Solder | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | |||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | |||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | Card Guides | ||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Wire Wrap | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | Solder | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge | ||||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 0.125 in | 3.18 mm | 1 | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Solder | Female | Gold | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Copper Alloy | Through Hole | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.51 | |
Description
General part information
396-017 Series
17 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
