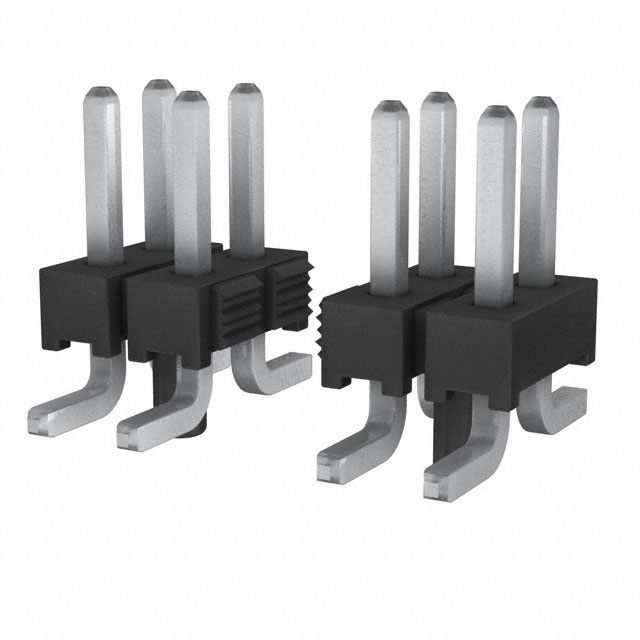

TMM-109-04-T-D-SM-A

Active

Samtec Inc.

2MM TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMM-109-04-T-D-SM-A

Active

Samtec Inc.

2MM TERMINAL STRIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-109-04-T-D-SM-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-109 Series

...

Part	Insulation Color	Contact Shape	Termination	Insulation Material	Number of Positions Loaded	Contact Finish - Mating	Shrouding	Mounting Type	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Material	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Style	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Features	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. TMM-109-05-L-S	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Through Hole	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.065 in	1.65 mm	0.214 in	5.43 mm	0.09 "	2.29 mm	Push-Pull	0.079 in	2 mm	9	Board to Board Cable	1	10 çin	0.25 çm	Male Pin
Samtec Inc. TMM-109-05-L-D-SM-M-TR	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Surface Mount	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.065 in	1.65 mm					Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	10 çin	0.25 çm	Male Pin	Pick and Place	0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-109-05-S-D	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Through Hole	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.065 in	1.65 mm	0.214 in	5.43 mm	0.09 "	2.29 mm	Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	30 Áin	0.76 Ám	Male Pin		0.079 in	2 mm
Samtec Inc. TMM-109-01-L-D	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Through Hole	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.126 "	3.2 mm		0.323 in	0.138 in	3.5 mm	Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	10 çin	0.25 çm	Male Pin		0.079 in	2 mm		8.2 mm
Samtec Inc. TMM-109-01-G-D-SM	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Surface Mount	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Gold	0.126 "	3.2 mm					Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	20 µin	0.51 µm	Male Pin		0.079 in	2 mm	UL94 V-0		3 µin	0.076 µm
Samtec Inc. TMM-109-04-G-D	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Through Hole	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Gold			0.224 in	5.69 mm	0.09 "	2.29 mm	Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	20 µin	0.51 µm	Male Pin		0.079 in	2 mm			3 µin	0.076 µm	1.9 mm	0.075 in
Samtec Inc. TMM-109-01-S-D-SM-A-P-TR	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Surface Mount	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.126 "	3.2 mm					Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	30 Áin	0.76 Ám	Male Pin	Board Guide Pick and Place	0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-109-06-S-D	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Through Hole	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.126 "	3.2 mm	0.377 in	9.58 mm	0.192 in	4.88 mm	Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	30 Áin	0.76 Ám	Male Pin		0.079 in	2 mm
Samtec Inc. TMM-109-01-S-D-SM-P	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All	Gold	Unshrouded	Surface Mount	3.2 A	Header	-55 °C	125 °C	1.5 mm	0.059 "	Phosphor Bronze	Tin	0.126 "	3.2 mm					Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2	30 Áin	0.76 Ám	Male Pin	Pick and Place	0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-109-04-T-D-SM-A	Black	Square	Solder	Liquid Crystal Polymer (LCP)	All		Unshrouded	Surface Mount	3.2 A	Header	-55 °C	105 ░C	1.5 mm	0.059 "	Phosphor Bronze	Tin							Push-Pull	0.079 in	2 mm	18	Board to Board Cable	2			Male Pin	Board Guide	0.079 in	2 mm	UL94 V-0				1.9 mm	0.075 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.77

Description

General part information

TMM-109 Series

Connector Header Surface Mount 18 position 0.079" (2.00mm)
