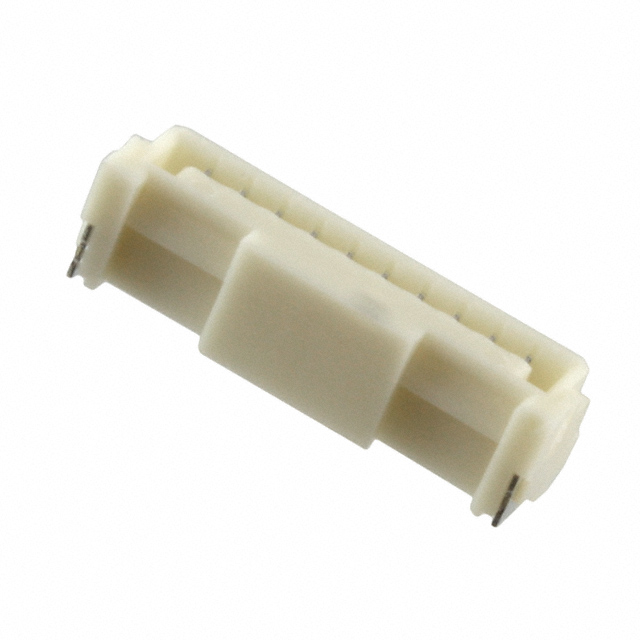

BM10B-GVHS-TB

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM10B-GVHS-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Natural
Insulation Height	4.05 mm
Insulation Height	0.159 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Fastening Type	Contact Finish - Post	Style	Number of Positions	Contact Material	Shrouding	Contact Type	Insulation Color	Voltage Rating	Number of Positions Loaded	Connector Type	Mated Stacking Heights	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Mounting Type	Features
JST Sales America Inc. BM10B-GVHS-TB	UL94 V-0	-25 °C	85 °C	1	Nylon 6T Polyamide (PA6T)	Latch Holder	Tin	Board to Cable/Wire	10	Phosphor Bronze	Shrouded - 4 Wall	Outer Shroud Contact	Natural	50 V	All	Header	8.8 mm	Solder	Rectangular	1.25 mm	0.049 in	4.05 mm	0.159 in	Surface Mount	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 10 position 0.049" (1.25mm)
