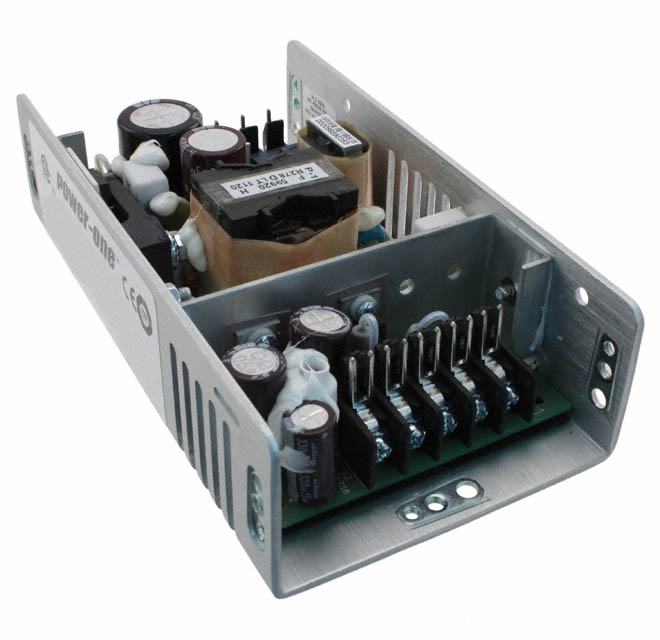

(MAP55-4001)

Active

Bel Power Solutions

AC/DC CNVRTR 5V 24V -12V 12V 55W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMAP40-1005, MAP55 Installation Instr

(MAP55-4001)

Active

Bel Power Solutions

AC/DC CNVRTR 5V 24V -12V 12V 55W

Deep-Dive with AI

DocumentsMAP40-1005, MAP55 Installation Instr

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MAP55 Series

Open Frame AC DC Converters 4 Output 5V 24V -12V 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

MAP40-1005, MAP55 Installation Instr

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	(MAP55-4001)	MAP55 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	6 A	2.5 - 8 A
Current - Output 2	1.5 A	1.5 - 5 A
Current - Output 3	500 mA	500 mA
Current - Output 4	500 mA	1 - 500 mA
Efficiency	73 %	73 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	55 W	55 W
Size / Dimension [x]	6 in	6 in
Size / Dimension [x]	152.4 mm	152.4 mm
Size / Dimension [y]	3.27 "	3.27 "
Size / Dimension [y]	83.1 mm	83.1 mm
Size / Dimension [z]	40.6 mm	40.6 mm
Size / Dimension [z]	1.6 "	1.6 "
Standard Number	-	60950-1
Type	Open Frame	Open Frame, Enclosed
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	5 V	5 - 24 V
Voltage - Output 2	24 V	12 - 24 V
Voltage - Output 3	-12 V	-15 - 12 V
Voltage - Output 4	12 V	-15 - 15 V

MAP55 Series

AC/DC CNVRTR 5V 24V +/-15V 55W

Part	Approval Agency	Voltage - Output 1	Voltage - Output 4	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Features	Operating Temperature [Max]	Power (Watts)	Number of Outputs	Current - Output 2	Voltage - Output 3	Mounting Type	Voltage - Isolation	Current - Output 4	Voltage - Output 2	Current - Output 3	Efficiency	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Type	Standard Number
Bel Power Solutions MAP55-4004G	CE	5 V	15 V	6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4	1.5 A	-15 V	Chassis Mount	2.6 kV	500 mA	24 V	500 mA	73 %	6 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions MAP55-4001C	CE	5 V	12 V	6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4	1.5 A	-12 V	Chassis Mount	2.6 kV	500 mA	24 V	500 mA	73 %	6 A	90 VAC	264 VAC	Enclosed
Bel Power Solutions (MAP55-4002)	CE	5 V		6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4		12 V	Chassis Mount	2.6 kV	500 mA	12 V	500 mA	73 %	6 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions MAP55-4003	CE	5 V	-15 V	6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4		-5 V	Chassis Mount	2.6 kV	500 mA	15 V	500 mA	73 %	6 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions MAP55-4004	CE	5 V	15 V	6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4	1.5 A	-15 V	Chassis Mount	2.6 kV	500 mA	24 V	500 mA	73 %	6 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions (MAP55-4000)	CE	5 V		6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4		-5 V	Chassis Mount	2.6 kV	500 mA	12 V	500 mA	73 %	6 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions MAP55-1012G	CE	12 V		6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	1			Chassis Mount	2.6 kV				73 %	5 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions (MAP55-4001)	CE	5 V	12 V	6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4	1.5 A	-12 V	Chassis Mount	2.6 kV	500 mA	24 V	500 mA	73 %	6 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions MAP55-1024G	CE	24 V		6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	1			Chassis Mount	2.6 kV				73 %	2.5 A	90 VAC	264 VAC	Open Frame
Bel Power Solutions MAP55-4002G	CE	5 V	12 V	6 in	3.27 "	152.4 mm	40.6 mm	1.6 "	83.1 mm	ITE (Commercial)	Adjustable Output, Universal Input	70 °C	55 W	4	5 A	-12 V	Chassis Mount	2.6 kV	1 A	12 V		73 %	8 A	90 VAC	264 VAC	Open Frame	60950-1
