35LJNS

Active

Switchcraft Inc.

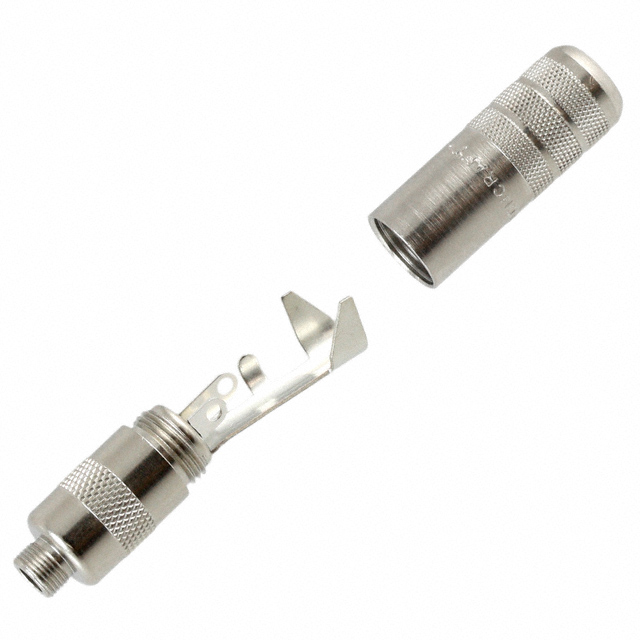

CONN 3.5MM AUDIO JACK F 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 3.5MM AUDIO JACK F 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	35LJNS	35LJN Series

Actual Diameter [diameter]	3.57 mm	3.57 mm
Actual Diameter [diameter]	0.141 in	0.141 in
Body Color	Silver	Silver
Body Material	Copper Alloy	Copper Alloy
Cable Opening	-	7.37 mm
Cable Opening	-	0.29 in
Cable Opening [diameter]	0.175 in	0.175 in
Cable Opening [diameter]	4.44 mm	4.44 mm
Connector Type	Phone Jack	Phone Jack
Contact Material	Beryllium Copper	Beryllium Copper
Contact Material - Plating [custom]	Silver	Silver, Gold
Gender	Female	Female
Housing Material	Copper Alloy	Copper Alloy
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

CONN 3.5MM AUDIO JACK F 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT

Part	Body Material	Body Color	Gender	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material - Plating [custom]	Shielding	Housing Material	Termination	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Contact Material	Connector Type	Signal Lines	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35LJNS	Copper Alloy	Silver	Female	0.175 in	4.44 mm	Silver	Unshielded	Copper Alloy	Solder Eyelet(s)	3	3	3.57 mm	0.141 in	Free Hanging (In-Line)	Beryllium Copper	Phone Jack	Stereo	0.141 "	0.125 "	3.5 mm
Switchcraft Inc. 35LJNAU	Copper Alloy	Silver	Female			Silver	Unshielded	Copper Alloy	Solder Eyelet(s)	3	3	3.57 mm	0.141 in	Free Hanging (In-Line)	Beryllium Copper	Phone Jack	Stereo	0.141 "	0.125 "	3.5 mm	7.37 mm	0.29 in
Switchcraft Inc. 35LJNAUS	Copper Alloy	Silver	Female	0.175 in	4.44 mm	Gold	Unshielded	Copper Alloy	Solder Eyelet(s)	3	3	3.57 mm	0.141 in	Free Hanging (In-Line)	Beryllium Copper	Phone Jack	Stereo	0.141 "	0.125 "	3.5 mm
