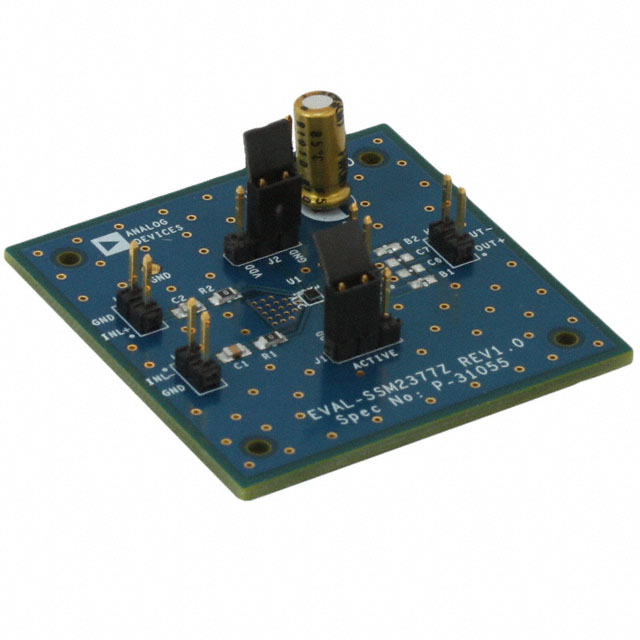

EVAL-SSM2377Z

Active

Analog Devices

BOARD EVAL FOR SSM2377

Search across all available documentation for this part.

Active

Analog Devices

BOARD EVAL FOR SSM2377

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL-SSM2377Z

Board Type	Fully Populated
Max Output Power x Channels @ Load	3.17 W
Max Output Power x Channels @ Load [custom]	4 Ohm
Max Output Power x Channels @ Load [custom]	1
Output Type	1-Channel (Mono)
Supplied Contents	Board(s)
Utilized IC / Part	SSM2377
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

Part	Mounting Type	Output Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Package / Case	Features	Utilized IC / Part	Supplied Contents	Board Type
Analog Devices SSM2377ACBZ-R7	Surface Mount	1-Channel (Mono)	4 Ohm	1	3.17 W	Class D	85 °C	-40 °C	2.5 V	5.5 V	1.24	9-WLCSP	1.24	9-UFBGA WLCSP	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown
Analog Devices EVAL-SSM2377Z		1-Channel (Mono)	4 Ohm	1	3.17 W				2.5 V	5.5 V						SSM2377	Board(s)	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 83.78

General part information

SSM2377 - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
