Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.64 | |
| 10 | $ 57.63 | |||
| 50 | $ 53.24 | |||
| 100 | $ 50.74 | |||
General part information

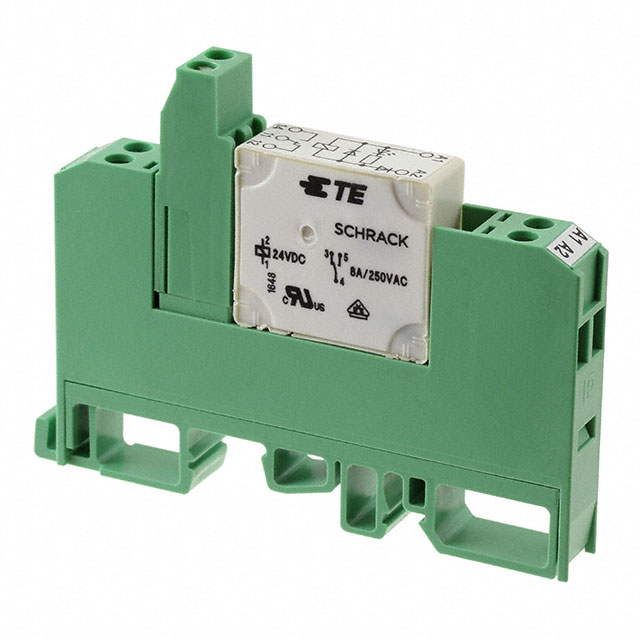

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2940359 |
|---|---|
| Approval Agency | UL, EAC, cULus |
| Coil Current | 21 mA |
| Coil Resistance | 1.14 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Socket Included, Diode, Lighted Indicator |
| Load - Max Switching | 140 W, 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
RELAY GEN PURPOSE SPDT 6A 24V
| Part | Coil Voltage | Contact Form | Mounting Type | Features | Termination Style | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Rating (Current) | Operate Time | Coil Type | Load - Max Switching | Coil Resistance | Release Time | Relay Type | Approval Agency | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2940359 | 24 VDC | SPDT (1 Form C) | DIN Rail | Diode, Lighted Indicator, Socket Included | Screw Terminal | 250 VAC, 250 VDC | -20 C | 40 °C | Silver Nickel (AgNi) | 6 A | 7 ms | Non Latching | 140 W, 1500 VA | 1.14 kOhms | 11 ms | General Purpose | cULus, EAC, UL | 21 mA |
