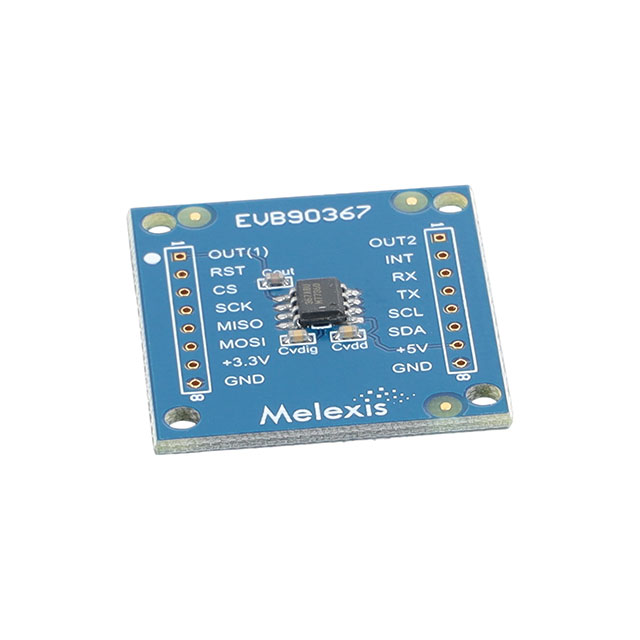

Specification	EVB90367-REV1.0

Contents	Board
Embedded	No
Sensing Range (Max)	70 mT
Sensing Range (Min)	20 mT
Sensor Type	Rotary Position, Linear, Magnetic
Supplied Contents	Board(s)
Utilized IC / Part	MLX90367
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V

MLX90367 Series

Part	Rotation Angle - Electrical, Mechanical (Minimum)	Rotation Angle - Electrical, Mechanical (Mode)	Rotation Angle - Electrical, Mechanical (Maximum)	Termination Style	Package Name	For Measuring	Mounting Type	Actuator Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Package Length	Package Width	Supplied Contents	Sensing Range (Max)	Sensing Range (Min)	Embedded	Contents	Sensor Type	Utilized IC / Part
Melexis Technologies NV MLX90367KDC-ABV-000-SP	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	125 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
Melexis Technologies NV EVB90367-REV1.0									5.5 V	4.5 V							Board(s)	70 mT	20 mT	No	Board	Linear Magnetic Rotary Position	MLX90367
Melexis Technologies NV MLX90367LDC-ABV-000-RE	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	150 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
Melexis Technologies NV MLX90367EDC-ABU-000-SP	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	85 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
Melexis Technologies NV MLX90367EGO-ABU-000-SP	0 °	Continuous	360 °	Gull Wing	16-TSSOP	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	85 °C	-40 °C	Hall Effect	0.173 in	4.4 mm
Melexis Technologies NV MLX90367KGO-ABS-090-RE	0 °	Continuous	360 °	Gull Wing	16-TSSOP	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	125 °C	-40 °C	Hall Effect	0.173 in	4.4 mm
Melexis Technologies NV MLX90367LDC-ABU-000-TU	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	150 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
Melexis Technologies NV MLX90367LDC-ABU-000-RE	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	150 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
Melexis Technologies NV MLX90367KDC-ABV-000-RE	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	125 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
Melexis Technologies NV MLX90367LDC-ABU-000-SP	0 °	Continuous	360 °	Gull Wing	8-SOIC	Linear Rotary Position	Surface Mount	External Magnet Not Included	5.5 V	4.5 V	SENT	150 °C	-40 °C	Hall Effect	0.154 in	3.9 mm
