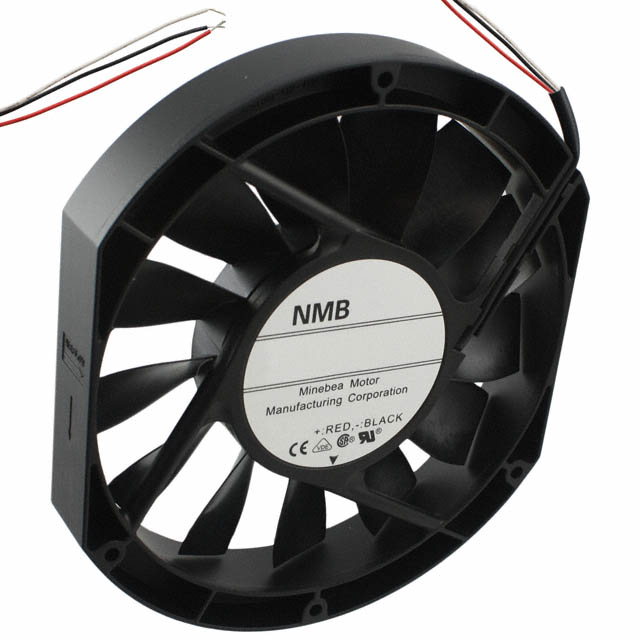

15025PA-48Q-AL-C0
ActiveNMB TECHNOLOGIES
FAN AXIAL 172X25.4MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
15025PA-48Q-AL-C0
ActiveNMB TECHNOLOGIES
FAN AXIAL 172X25.4MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 15025PA-48Q-AL-C0 |
|---|---|
| Air Flow | 290 CFM |
| Air Flow | 8.12 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.74 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 65.4 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 35.5 W |
| RPM | 4100 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [z] | 150 mm |
| Static Pressure | 0.935 in H2O |
| Static Pressure | 233 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 60 V |
| Voltage Range [Min] | 25 VDC |
| Weight | 500 g |
| Weight | 1.1 lbs |
| Width [y] | 25.4 mm |
15025PA Series
| Part | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Static Pressure | Static Pressure | Air Flow | Air Flow | Noise | Material - Frame | Termination | Material - Blade | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Fan Type | Approval Agency | Bearing Type | Power (Watts) | Voltage Range [Max] | Voltage Range [Min] | RPM | Weight | Weight | Width [y] | Features | Voltage - Rated [custom] | Termination | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 2.06 A | 70 °C | 70 °C | -10 °C | -10 °C | 0.657 in H2O | 163.7 Pa | 7 mł/min | 250 CFM | 62.5 dB | Aluminum | 2 Wire Leads | Plastic | Rectangular/Rounded | 150 mm | 172 mm | 12 VDC | Tubeaxial | CE CSA UL VDE | Ball | 24.7 W | 18 VDC | 6 VDC | 3500 RPM | 500 g | 1.1 lbs | 25.4 mm | ||||
NMB TECHNOLOGIES | 0.74 A | 70 °C | 70 °C | -10 °C | -10 °C | 0.935 in H2O | 233 Pa | 8.12 m³/min | 290 CFM | 65.4 dB(A) | Aluminum | 3 Wire Leads | Plastic | Rectangular/Rounded | 150 mm | 172 mm | Tubeaxial | CE CSA UL VDE | Ball | 35.5 W | 60 V | 25 VDC | 4100 RPM | 500 g | 1.1 lbs | 25.4 mm | Locked Rotor Sensor | 48 VDC | |||
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | Aluminum | Plastic | Rectangular/Rounded | 150 mm | 172.7 mm | 12 VDC | Tubeaxial | Ball | 25.4 mm | Auto Restart Speed Sensor (Tach) | 3 Terminals | 100000 Hrs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 60.62 | |
Description
General part information
15025PA Series
Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 290.0 CFM (8.12m³/min) 3 Wire Leads
