XPGDPR Series

Part	Temperature - Test	Voltage - Forward (Vf) (Typ)	Wavelength (Typ)	Current - Test	Package / Case	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Viewing Angle	Luminous Flux	Mounting Type	Color	Current - Max	Package Name	Wavelength	Luminous Flux (Minimum)	Luminous Flux (Maximum)	Thermal Resistance of Package

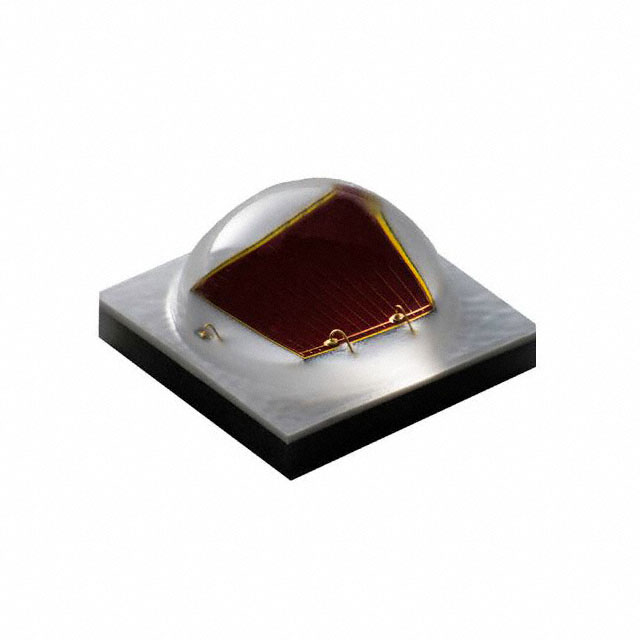

CreeLED, Inc. XPGDPR-LS-0000-00G01	25 °C	1.95 V	645 nm	350 mA	1414 (3535 Metric)	0.094 in	0.136 in	0.136 in	125 °	525 mW	Surface Mount	Red	1.5 A	SMD
CreeLED, Inc. XPGDPR-L1-0000-00E01	25 °C	1.99 V		350 mA	1414 (3535 Metric)	0.094 in	0.136 in	0.136 in	125 °	488 mW	Surface Mount	Red	1.5 A	1414	645 nm	475 mW	500 mW
CreeLED, Inc. XPGDPR-LS-0000-00F01	25 °C	1.95 V	645 nm	350 mA	1414 (3535 Metric)	0.094 in	0.136 in	0.136 in	125 °	500 mW	Surface Mount	Red	1.5 A	SMD
CreeLED, Inc. XPGDPR-L1-0000-00F01	25 °C	1.99 V	645 nm	350 mA	1414 (3535 Metric)	0.094 in	0.136 in	0.136 in	125 °	513 mW	Surface Mount	Red	1.5 A	SMD		500 mW	525 mW	2.5 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
