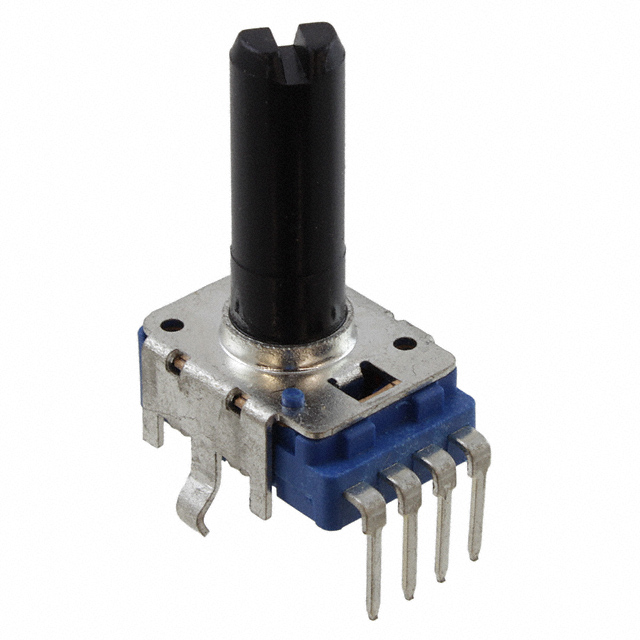

PTV111-4425A-B105

Active

Bourns Inc.

POT 1M OHM 1/20W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTV111-4425A-B105

Active

Bourns Inc.

POT 1M OHM 1/20W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTV111-4425A-B105

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [x]	0.984 in
Actuator Length [x]	25 mm
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	False
Mounting Type	Through Hole, Snap In
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	1M
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.528 in
Size - Body [x]	13.4 mm
Size - Body [y]	0.472 in
Size - Body [y]	12 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTV111 Series

Part	Mounting Type	Resistance (Ohms)	Number of Turns	Power (Watts)	Power (Watts)	Tolerance	Adjustment Type	Rotation	Number of Gangs	Resistive Material	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Taper	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Termination Style	Actuator Length [x]	Actuator Length [x]	Actuator Length [z]	Actuator Length	Bushing Thread	Resistance (Ohms)	Actuator Length [z]	Built in Switch
Bourns Inc. PTV111-4425A-B105	Snap In Through Hole	1M	1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Linear	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins	0.984 in	25 mm
Bourns Inc. PTV111-4415A-C103	Snap In Through Hole	10k	1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Reverse Logarithmic	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.591 in	15 mm
Bourns Inc. PTV111-3415A-B104			1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Linear	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.591 in	15 mm	M9 x 0.75	100 kOhms
Bourns Inc. PTV111-3420A-A203			1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Logarithmic	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.787 in		M9 x 0.75	20 kOhms	20 mm
Bourns Inc. PTV111-1420A-B102			1	0.05 W	50 mW	20 %	Side Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Linear	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.787 in		M9 x 0.75	1 kOhms	20 mm
Bourns Inc. PTV111-4427A-A105	Snap In Through Hole	1M	1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Logarithmic	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins	1.083 in	27.5 mm
Bourns Inc. PTV111-4425A-A203	Snap In Through Hole		1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Logarithmic	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins	0.984 in	25 mm				20 kOhms
Bourns Inc. PTV111-4220A-B103	Snap In Through Hole	10k	1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Linear	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.787 in				20 mm	Detent
Bourns Inc. PTV111-3415A-A104			1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Logarithmic	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.591 in	15 mm	M9 x 0.75	100 kOhms
Bourns Inc. PTV111-4420A-B503	Snap In Through Hole		1	0.05 W	50 mW	20 %	Top Adjustment	300 ░	1	Carbon	0.236 in	6 mm	Flatted	Linear	0.472 in	12 mm	0.528 in	13.4 mm	Board Locks PC Pins			0.787 in			50 kOhms	20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.70
		10	$ 1.50
		25	$ 1.35
		40	$ 1.30
		100	$ 1.25
		300	$ 1.17
		500	$ 1.00
		1000	$ 0.92
		4900	$ 0.76

Description

General part information

PTV111 Series

1M Ohm 1 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Carbon 0.05W, 1/20W PC Pins, Board Locks
