Q-2M03N000R006i

Active

Amphenol Custom Cable

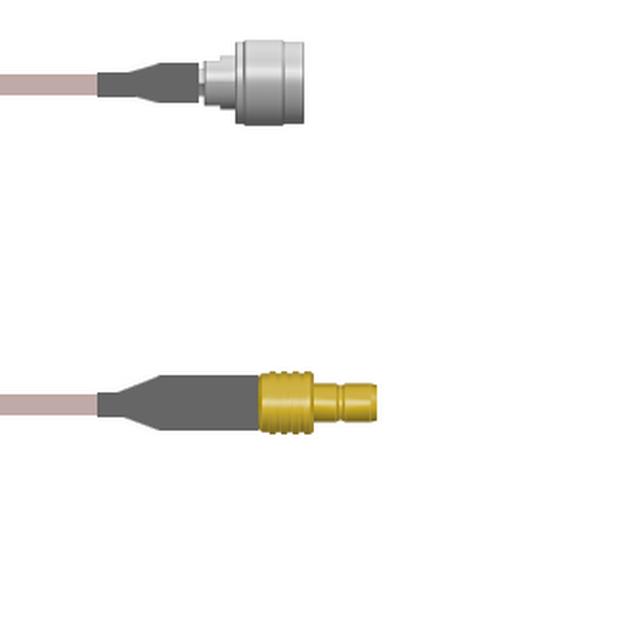

CBL ASSY SMB-NTYPE JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2M03N000R006i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2M03N000R006i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2M03N0 Series

Part	1st Connector Mounting Type	Color	2nd Contact Gender	1st Connector	Cable Type	2nd Connector	1st Contact Gender	Length	Length	Length	2nd Connector Mounting Type	Overall Impedance	Features	Style	Frequency - Max [Max]
Amphenol Custom Cable Q-2M03N000R060i	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male	5 ft	1.5 m	5 '	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R006i	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male		152.4 mm	6 in	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R108i	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male	9 ft	2.7 m	108 in	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R001M	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male	3.3 ft	1 m	39.4 in	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R2.5M	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male	8.2 '	2.5 m	98.4 in	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R036i	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male		91.44 cm	36 in	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R.75M	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male		750 mm	29.53 "	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R012i	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male		304.8 mm	12 "	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R1.5M	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male	4.9 ft	1.5 m	59.1 in	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz
Amphenol Custom Cable Q-2M03N000R0.5M	Free Hanging (In-Line)	Copper	Male	SMB Jack	RG-316 DB	N-Type Plug	Male		50 cm	19.69 "	Free Hanging (In-Line)	50 Ohms	Shielded	SMB to N-Type	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 120.26
		25	$ 119.17
		50	$ 118.07
		100	$ 116.98
		250	$ 115.89

Description

General part information

Q-2M03N0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 DB 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
