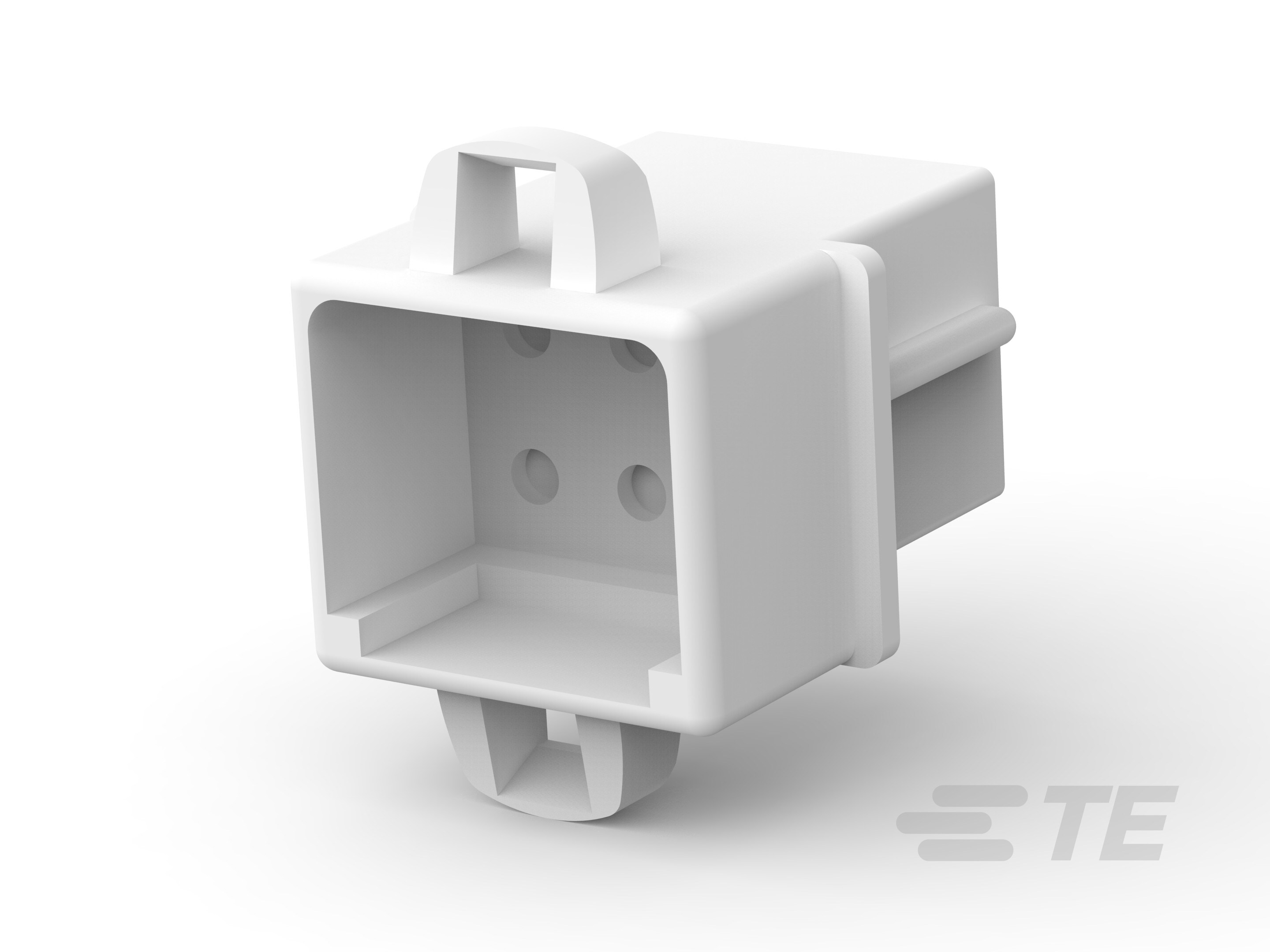

Specification	1-480276-0

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.202 in
Row Spacing	0.202 in

Commercial MATE-N-LOK Series

...
