100291-1
ActiveTE Connectivity AMP Connectors

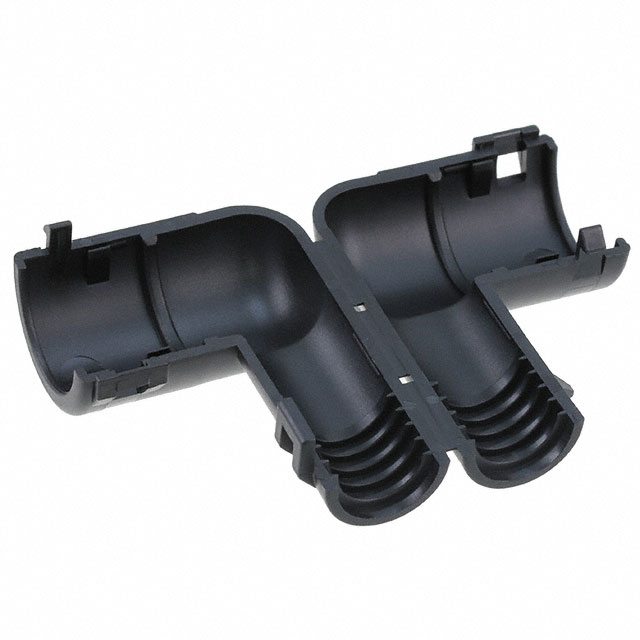

CONN BACKSH W/CLMP SZM24 M27 BLK
Deep-Dive with AI
Search across all available documentation for this part.
100291-1
ActiveTE Connectivity AMP Connectors
CONN BACKSH W/CLMP SZM24 M27 BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 100291-1 |
|---|---|
| Cable Exit | 90 ° |
| Cable Opening [diameter] | 0.648 in |
| Cable Opening [diameter] | 16.45 mm |
| Color | Black |
| Diameter - Outside [diameter] | 0.992 " |
| Diameter - Outside [diameter] | 25.2 mm |
| For Use With/Related Products | M24, M27 Insert |
| Material | Polybutylene Terephthalate (PBT) |
| Shell Size - Insert | M24, M27 |
| Type | Backshell, Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.10 | |
| 10 | $ 3.65 | |||
| 25 | $ 3.63 | |||
| 50 | $ 3.59 | |||
| 100 | $ 3.24 | |||
| 300 | $ 3.22 | |||
| 600 | $ 2.98 | |||
| 1200 | $ 2.66 | |||
| 2700 | $ 2.46 | |||
100291 Series
CONN BACKSH W/CLMP SZM24 M27 BLK
| Part | Material | Cable Opening [diameter] | Cable Opening [diameter] | Type | Color | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Cable Exit | For Use With/Related Products | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 100291-1 | Polybutylene Terephthalate (PBT) | 0.648 in | 16.45 mm | Backshell, Cable Clamp | Black | 0.992 " | 25.2 mm | 90 ° | M24, M27 Insert | M24, M27 |
Description
General part information
100291 Series
Black Connector Backshell, Cable Clamp M24, M27
Documents
Technical documentation and resources
No documents available
