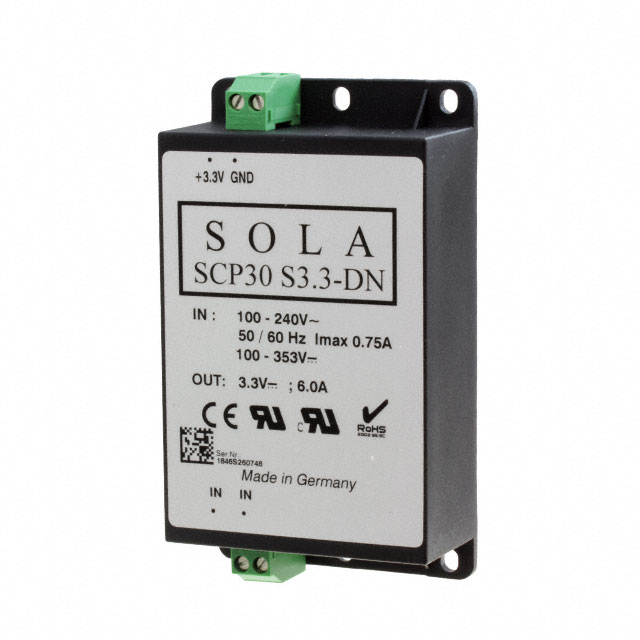

SCP30S3.3-DN

Unknown

SolaHD

AC/DC DIN RAIL SUPPLY 3.3V 20W

Deep-Dive with AI

Search across all available documentation for this part.

SCP30S3.3-DN

Unknown

SolaHD

AC/DC DIN RAIL SUPPLY 3.3V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SCP30S3.3-DN

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	6 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	100 V
Efficiency	62 %
Features	Universal Input, IP20
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	20 W
Size / Dimension [x]	2.55 "
Size / Dimension [x]	65 mm
Size / Dimension [y]	1.29 "
Size / Dimension [y]	33 mm
Size / Dimension [z]	120 mm
Size / Dimension [z]	4.71 "
Voltage - Output 1	3.3 V

SCP30 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Input Type	Power (Watts)	Applications	DC Voltage - Input (Min) [Min]	Features	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Number of Outputs	Voltage - Output 2	Current - Output (Max)	Voltage - Output 3	Current - Output (Max)	Current - Output (Max)
SolaHD SCP30S3.3-DN	120 mm	1.29 "	4.71 "	33 mm	2.55 "	65 mm	375 V	6 A	3.3 V	AC or DC	20 W	ITE (Commercial)	100 V	IP20 Universal Input	62 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	1
SolaHD SCP30S15-DN	120 mm	1.29 "	4.71 "	33 mm	2.55 "	65 mm	375 V	2 A	15 V	AC or DC	30 W	ITE (Commercial)	100 V	IP20 Universal Input	75 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	1
SolaHD SCP30T515-DN	120 mm	1.29 "	4.71 "	33 mm	2.55 "	65 mm	375 V		5 V	AC or DC	30 W	ITE (Commercial)	100 V	IP20 Universal Input	68 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	3	-15 V	3 A 500 mA	15 V
SolaHD SCP30S3.3B-DN	113 mm	1.37 in	4.43 in	35 mm	2.67 in	68 mm	375 V	6 A	3.3 V	AC or DC	20 W	ITE (Commercial)	100 V	IP20 Universal Input	62 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	1
SolaHD SCP30T512B-DN	113 mm	1.37 in	4.43 in	35 mm	2.67 in	68 mm	375 V		5 V	AC or DC	29 W	ITE (Commercial)	100 V	IP20 Universal Input	68 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	3	-12 V	3 A	12 V	600 mA	600 mA
SolaHD SCP30D524B-DN	113 mm	1.37 in	4.43 in	35 mm	2.67 in	68 mm	375 V		5 V	AC or DC	29 W	ITE (Commercial)	100 V	IP20 Universal Input	68 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	2	24 V	3 A		600 mA
SolaHD SCP30T515B-DN	113 mm	1.37 in	4.43 in	35 mm	2.67 in	68 mm	375 V		5 V	AC or DC	30 W	ITE (Commercial)	100 V	IP20 Universal Input	68 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	3	-15 V	3 A 500 mA	15 V
SolaHD SCP30S5-DN	120 mm	1.29 "	4.71 "	33 mm	2.55 "	65 mm	375 V	6 A	5 V	AC or DC	30 W	ITE (Commercial)	100 V	IP20 Universal Input	70 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	1
SolaHD SCP30S15B-DN	113 mm	1.37 in	4.43 in	35 mm	2.67 in	68 mm	375 V	2 A	15 V	AC or DC	30 W	ITE (Commercial)	100 V	IP20 Universal Input	75 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	1
SolaHD SCP30D524-DN	120 mm	1.29 "	4.71 "	33 mm	2.55 "	65 mm	375 V		5 V	AC or DC	29 W	ITE (Commercial)	100 V	IP20 Universal Input	68 %	85 VAC	264 VAC	65 °C	-25 °C	CE cURus	2	24 V	3 A		600 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SCP30 Series

AC/DC DIN RAIL SUPPLY 3.3V 20W

Documents

Technical documentation and resources

No documents available
