2942-6045

Active

Amphenol SV Microwave

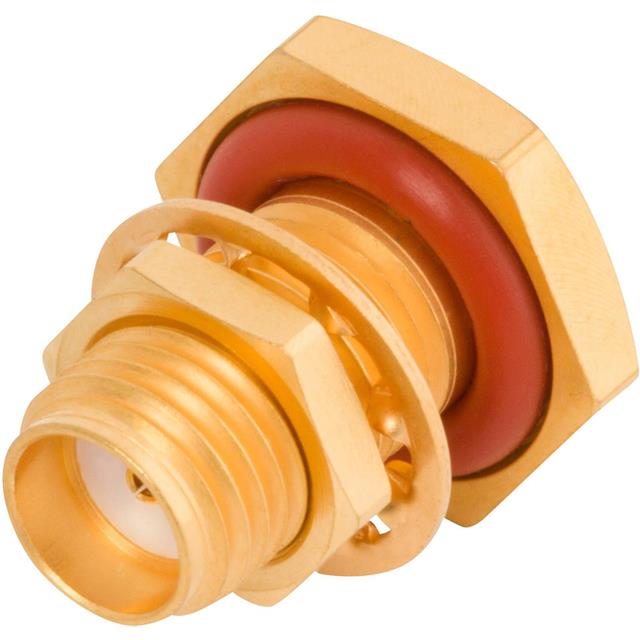

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	2942-6045

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder

Part	Mating Cycles	Center Contact Material	Includes	Impedance	Connector Type	Center Contact Plating	Housing Color	Body Finish	Dielectric Material	Shield Termination	Number of Ports	Mounting Feature	Contact Termination	Cable Group	Cable Group	Connector Style	Body Material	Frequency - Max [Max]
Amphenol SV Microwave 2942-6045	500	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	50 Ohms	Female Socket Jack	Gold	Gold	Gold	Polytetrafluoroethylene (PTFE)	Solder	1	Bulkhead - Front Side Nut	Solder	RG-402 (.141" Flexible)	0.141 in	SMA	Stainless Steel	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
