PQG3FRA112

Active

Switchcraft Inc.

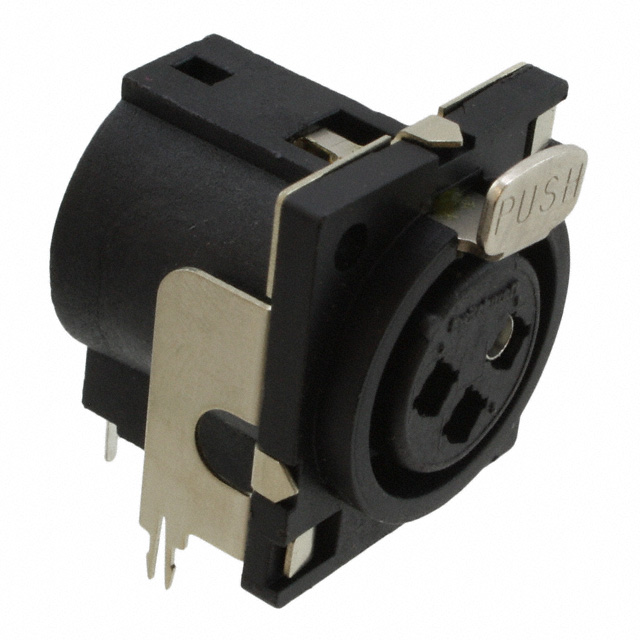

CONN PLUG FMALE XLR 3P SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PQG3FRA112	PQG3FR Series

Applications	Audio	Audio
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Electro-Tin	Electro-Tin
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Latch Lock	Latch Lock
Features	Board Lock, Ground, Board Guide	Board Lock, Ground, Board Guide
Insert Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-34 °C	-34 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Shell Size - Insert	XLR	XLR
Termination	Solder	Solder

CONN PLUG FMALE XLR 3P SOLDER

Part	Contact Finish - Mating	Material Flammability Rating	Primary Material	Shell Size - Insert	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Color	Contact Material	Shell Material	Mounting Type	Termination	Applications	Insert Material	Features	Mounting Feature
Switchcraft Inc. PQG3FRA012	Electro-Tin	UL94 V-0	Plastic	XLR	Keyed	Female Sockets, Plug	85 °C	-34 °C	Latch Lock	Black	Copper Alloy	Thermoplastic, Glass Filled	Panel Mount, Right Angle, Through Hole	Solder	Audio	Thermoplastic, Glass Filled	Board Guide, Board Lock, Ground	Flange
Switchcraft Inc. PQG3FRA010	Electro-Tin	UL94 V-0	Plastic	XLR	Keyed	Female Sockets, Plug	85 °C	-34 °C	Latch Lock	Black	Copper Alloy	Thermoplastic, Glass Filled	Panel Mount, Right Angle, Through Hole	Solder	Audio	Thermoplastic, Glass Filled	Board Guide, Ground
Switchcraft Inc. PQG3FRA011	Electro-Tin	UL94 V-0	Plastic	XLR	Keyed	Female Sockets, Plug	85 °C	-34 °C	Latch Lock	Black	Copper Alloy	Thermoplastic, Glass Filled	Panel Mount, Right Angle, Through Hole	Solder	Audio	Thermoplastic, Glass Filled	Board Guide, Ground	Flange
Switchcraft Inc. PQG3FRA112	Electro-Tin	UL94 V-0	Plastic	XLR	Keyed	Female Sockets, Plug	85 °C	-34 °C	Latch Lock	Black	Copper Alloy	Thermoplastic, Glass Filled	Panel Mount, Right Angle, Through Hole	Solder	Audio	Thermoplastic, Glass Filled	Board Guide, Board Lock, Ground	Flange
