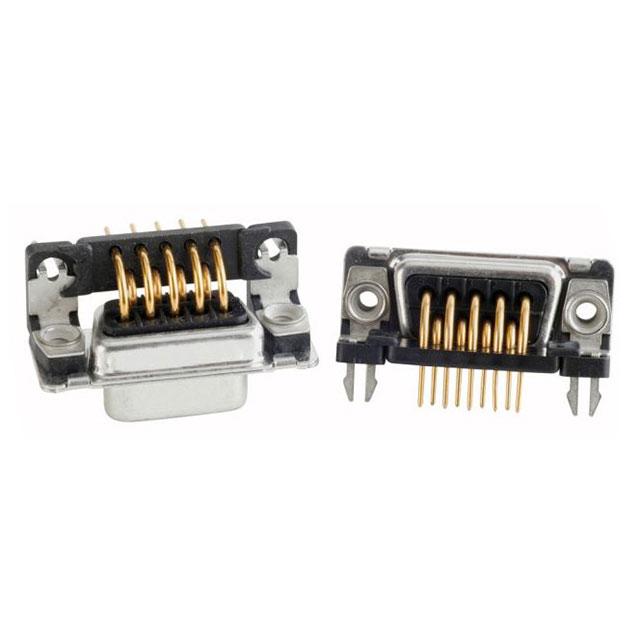

164A18889X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A18889X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A18889X

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

164A188 Series

Part	Shell Size, Connector Layout	Features	Connector Style	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Color	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Mounting Type	Dielectric Material	Contact Type	Contact Material	Termination	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol CONEC 164A18899X	2	Board Lock Mounting Brackets	D-Sub	0.283 in	7.2 mm	8 çin	0.203 çm	2	Gold	Receptacle Female Sockets	125 VDC	-55 °C	125 °C	4-40	Black	7.5 A	UL94 V-0	15	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	Solder
Amphenol CONEC 164A18829X		Board Lock Mounting Brackets	D-Sub	0.283 in	7.2 mm			2	Gold	Receptacle Female Sockets	125 VDC	-55 °C	125 °C	Housing/Shell (4-40)	Black	7.5 A	UL94 V-0		Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	Solder	Flash	B DB	3
Amphenol CONEC 164A18889X		Board Lock Mounting Brackets	D-Sub	0.283 in	7.2 mm	8 çin	0.203 çm	2	Gold	Receptacle Female Sockets	125 VDC	-55 °C	125 °C	4-40	Black	7.5 A	UL94 V-0	9	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	Solder		DE E	1
Amphenol CONEC 164A18839X		Board Lock Mounting Brackets	D-Sub	0.283 in	7.2 mm			2	Gold	Receptacle Female Sockets	125 VDC	-55 °C	125 °C	Housing/Shell (4-40)	Black	7.5 A	UL94 V-0	37	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	Solder	Flash			4 (DC C)
Amphenol CONEC 164A18879X		Board Lock Mounting Brackets	D-Sub	0.283 in	7.2 mm			2	Gold	Receptacle Female Sockets	125 VDC	-55 °C	125 °C	Housing/Shell (M3)	Black	7.5 A	UL94 V-0	37	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	Solder	Flash			4 (DC C)
Amphenol CONEC 164A18819X	2	Board Lock Mounting Brackets	D-Sub	0.283 in	7.2 mm			2	Gold	Receptacle Female Sockets	125 VDC	-55 °C	125 °C	Housing/Shell (4-40)	Black	7.5 A	UL94 V-0	15	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.17
		10	$ 7.24
		30	$ 6.96
		60	$ 6.68
		120	$ 6.54

Description

General part information

164A188 Series

9 Position D-Sub Receptacle, Female Sockets Connector
