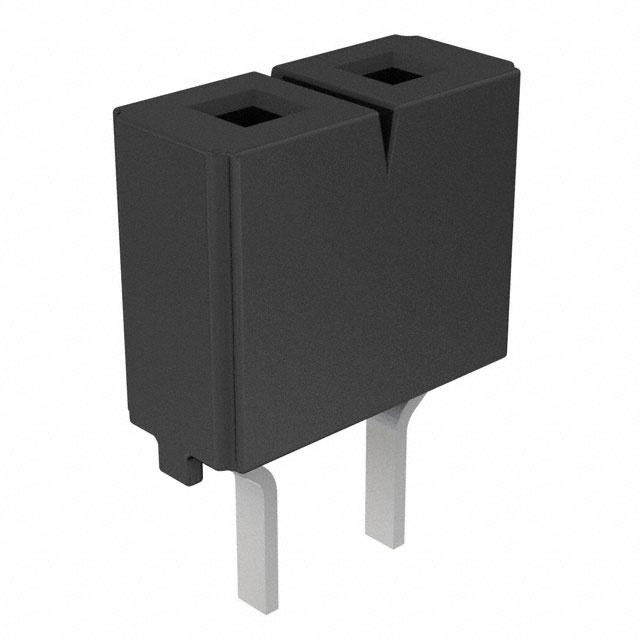

CES-101-02-T-D

Active

Samtec Inc.

CONN RCPT 2POS TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCES Series Other Related Documents 01 Datasheet +1

CES-101-02-T-D

Active

Samtec Inc.

CONN RCPT 2POS TIN PCB

Deep-Dive with AI

DocumentsCES Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-101-02-T-D

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	5.66 mm
Contact Length - Post [x]	0.223 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

CES-101 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Contact Material	Contact Finish - Post	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Type	Insulation Material	Mounting Type	Connector Type	Fastening Type	Insulation Color	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. CES-101-02-T-D	5.66 mm	0.223 in	105 ░C	-55 °C	All	UL94 V-0	2	Phosphor Bronze	Tin	2	2.54 mm	0.1 in	Solder	Female Socket	Polybutylene Terephthalate (PBT)	Through Hole	Receptacle	Push-Pull	Black	Square
Samtec Inc. CES-101-02-G-S	5.66 mm	0.223 in	125 °C	-55 °C	All	UL94 V-0	1	Phosphor Bronze	Gold	1			Solder	Female Socket	Polybutylene Terephthalate (PBT)	Through Hole	Receptacle	Push-Pull	Black	Square	0.51 µm	20 µin	3 µin	0.076 µm	Gold
Samtec Inc. CES-101-02-G-S-RA	3.05 mm	0.12 in	125 °C	-55 °C	All	UL94 V-0	1	Phosphor Bronze	Gold	1			Solder	Female Socket	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Receptacle	Push-Pull	Black	Square	0.51 µm	20 µin	3 µin	0.076 µm	Gold	3.05 mm	0.12 in
Samtec Inc. CES-101-02-L-S	5.66 mm	0.223 in	125 °C	-55 °C	All	UL94 V-0	1	Phosphor Bronze	Tin	1			Solder	Female Socket	Polybutylene Terephthalate (PBT)	Through Hole	Receptacle	Push-Pull	Black	Square	0.25 çm	10 çin			Gold
Samtec Inc. CES-101-01-S-S			125 °C	-55 °C	All	UL94 V-0	1	Phosphor Bronze	Tin	1			Solder	Female Socket	Polybutylene Terephthalate (PBT)	Through Hole	Receptacle	Push-Pull	Black	Square	0.76 Ám	30 Áin			Gold			0.128 "	3.25 mm
Samtec Inc. CES-101-01-L-D			125 °C	-55 °C	All	UL94 V-0	2	Phosphor Bronze	Tin	2	2.54 mm	0.1 in	Solder	Female Socket	Polybutylene Terephthalate (PBT)	Through Hole	Receptacle	Push-Pull	Black	Square	0.25 çm	10 çin			Gold			0.128 "	3.25 mm
