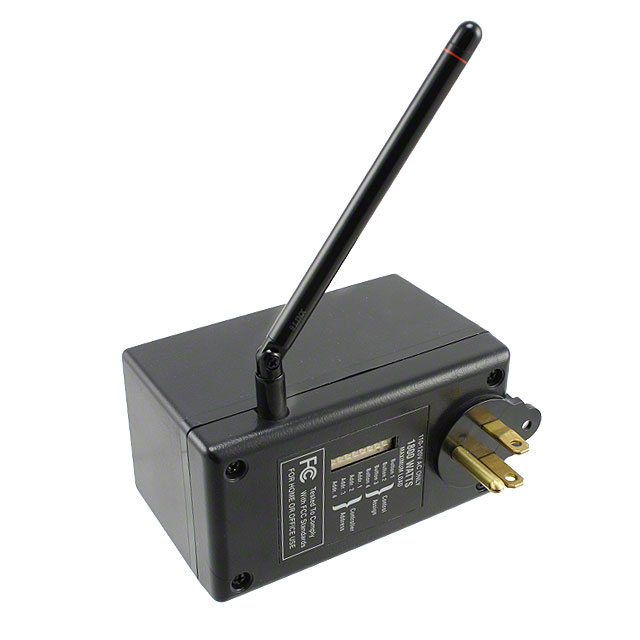

FCTN-WALL-433

Obsolete

TE Connectivity Linx

MODULE AC SWITCH RECEIVER 433MHZ

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

MODULE AC SWITCH RECEIVER 433MHZ

Technical Specifications

Parameters and characteristics for this part

Specification	FCTN-WALL-433

Applications	Wire Elimination, General Remote Control
Data Rate (Max)	1.2 kbps
Features	1800 W, 1 HP, 15 Amps
Frequency	433 MHz
Function	Receiver, Relay
Interface	Receiver, Latched Output
Modulation or Protocol	ASK, OOK
Sensitivity	-95 dBm
Voltage - Supply [Max]	120 VAC
Voltage - Supply [Min]	100 VDC

Part	Modulation or Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency	Features	Applications	Sensitivity	Function	Interface	Data Rate (Max)
TE Connectivity Linx FCTN-WALL-433	ASK OOK	100 VDC	120 VAC	433 MHz	1 HP 15 Amps 1800 W	General Remote Control Wire Elimination	-95 dBm	Receiver Relay	Latched Output Receiver	1.2 kbps
TE Connectivity Linx FCTN-WALL-418	ASK OOK	100 VDC	120 VAC	418 MHz	1 HP 15 Amps 1800 W	General Remote Control Wire Elimination	-95 dBm	Receiver Relay	Latched Output Receiver	1.2 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Receiver, Relay 433MHz ASK, OOK Receiver, Latched Output 1.2kbps
