357-082-559-258
ActiveEDAC Inc.

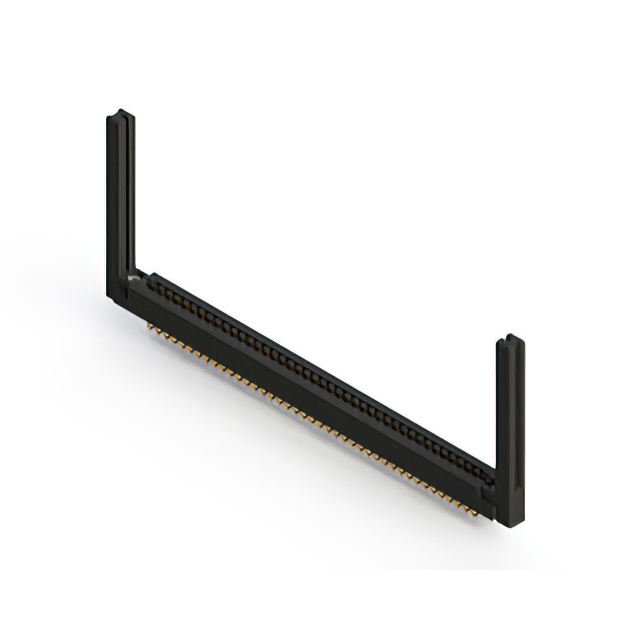

CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-082-559-258
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-082-559-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-082 Series
| Part | Contact Finish | Contact Type | Contact Material | Pitch [x] | Pitch [x] | Gender | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Termination | Card Type | Color | Read Out | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Mounting Type | Material - Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Wire Wrap | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Through Hole Right Angle | Polyester Thermoplastic | |
EDAC Inc. | Tin | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Non Specified - Dual Edge | Black | Dual | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Through Hole Right Angle | Polyester Thermoplastic | |||
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Board Edge Straddle Mount | Polyester Thermoplastic | Card Extender |
EDAC Inc. | Tin | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Non Specified - Dual Edge | Black | Dual | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Through Hole | Polyester Thermoplastic | |||
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Board Edge Straddle Mount | Polyester Thermoplastic | Card Extender |
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Board Edge Straddle Mount | Polyester Thermoplastic | |||
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 2 | Through Hole | Polyester Thermoplastic | |||
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Board Edge Straddle Mount | Polyester Thermoplastic | |||
EDAC Inc. | Gold | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Non Specified - Dual Edge | Black | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Through Hole Right Angle | Polyester Thermoplastic | Card Guides | ||
EDAC Inc. | Tin | Semi Bellows | Copper Alloy | 0.156 in | 3.96 mm | Female | 82 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Non Specified - Dual Edge | Black | Dual | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Through Hole | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 21.92 | |
Description
General part information
357-082 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
