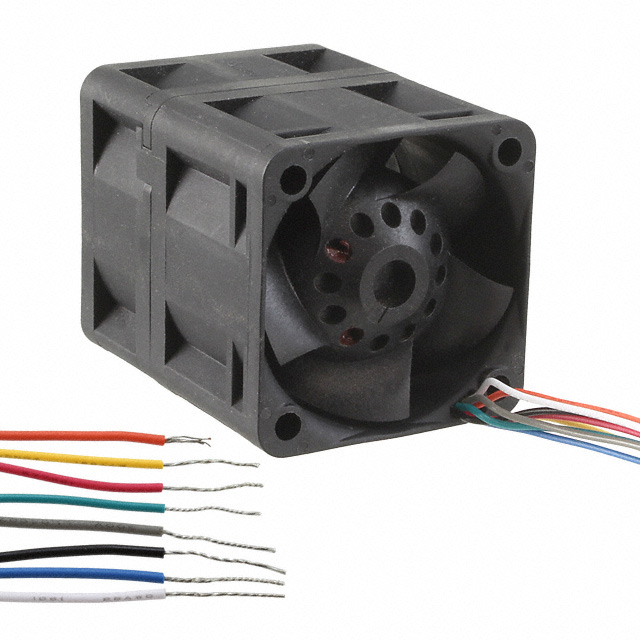

GFC03812HG-DV46

Obsolete

Delta Electronics

FAN AXIAL DUAL 38X48MM 12VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL DUAL 38X48MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	GFC03812HG-DV46

Air Flow	26.4 CFM
Air Flow	0.739 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	1.52 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	18.24 W
RPM [custom]	20000 RPM
RPM [custom]	21700 RPM
Size / Dimension [x]	38 mm
Size / Dimension [z]	38 mm
Static Pressure	963 Pa
Static Pressure	3.866 in H2O
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.167 lb
Weight	75.75 g
Width [x]	48 mm

Part	Termination	Power (Watts)	Width [x]	Voltage Range [Min]	Voltage Range [Max]	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Material - Blade	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Approval Agency	Lifetime @ Temp.	Noise	Static Pressure	Static Pressure	Material - Frame	Current Rating (Amps)	Air Flow	Air Flow	Weight	Weight	Bearing Type	RPM [custom]	RPM [custom]
Delta Electronics GFC03812HG-DV46	4 Wire Leads per Fan	18.24 W	48 mm	10.8 VDC	12.6 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	12 VDC	Plastic	38 mm	38 mm	Tubeaxial (Dual)	cURus TUV	50000 Hrs	64 dB(A)	963 Pa	3.866 in H2O	Plastic	1.52 A	26.4 CFM	0.739 mł/min	0.167 lb	75.75 g	Ball	20000 RPM	21700 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial (Dual) 12VDC Square - 38mm L x 38mm H Ball 26.4 CFM (0.739m³/min) 4 Wire Leads per Fan
