5308 905/SET

Active

Altech Corporation

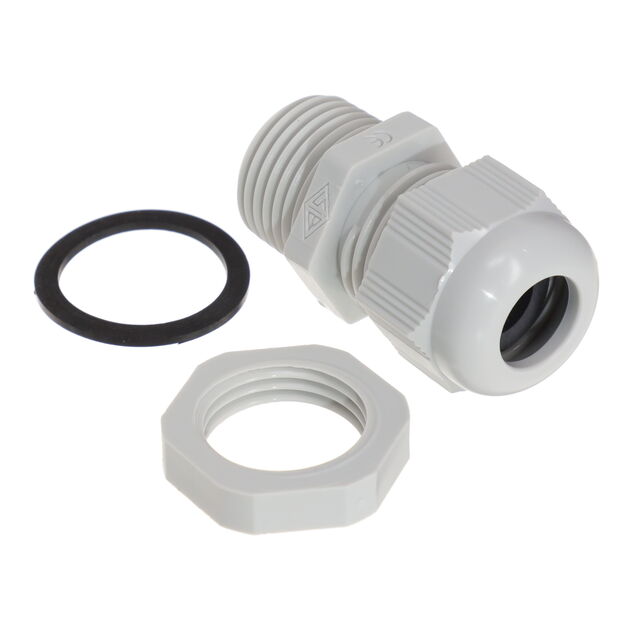

NPT1/2 CORD GRIP, 3.0 - 9.0MM, GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5308 905/SET

Active

Altech Corporation

NPT1/2 CORD GRIP, 3.0 - 9.0MM, GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.79
		10	$ 3.44
		25	$ 3.26
		50	$ 3.18
		100	$ 3.03
		250	$ 2.65
		500	$ 2.58
		1000	$ 2.20
		2500	$ 2.05
Newark	Each	1	$ 3.95
		100	$ 3.23
		250	$ 2.96
		500	$ 2.75
		1000	$ 2.58

Description

General part information

5308 Series

Cable Gland Polyamide (PA), Nylon 1/2" NPT Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5308 905/SET	5308 Series

Color	Gray	Black, Gray
Includes	Locknut	Locknut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature	-	-25 - 100 °C
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	14 - 32 mm
Outside Cable Diameter (Max)	-	0.551 - 1.26 "
Outside Cable Diameter (Max)	-	0.236 - 0.984 in
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	9 mm	9 - 38.5 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.354 in	0.354 - 21 mm
Outside Cable Diameter (Min)	-	7 mm
Outside Cable Diameter (Min)	-	3.5 - 5 mm
Outside Cable Diameter (Min)	-	0.138 - 0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	1.5 - 24 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.059 - 0.945 in
Panel Hole Size	21.2 mm	1.457 - 50 mm
Panel Hole Size	0.835 in	0.472 - 1.969 in
Panel Hole Size	-	37 mm
Panel Hole Size	-	1.85 in
Panel Hole Size	-	47 mm
Thread Length	14 mm	8 - 18.01 mm
Thread Length	0.551 in	0.315 - 0.709 in
Thread Size	1/2" NPT	M20x1.5, PG13.5, M16x1.5, PG7, M12x1.5, 1/2" NPT, 1" NPT, M25x1.5, PG29, M32x1.5, PG21, PG36, 3/4 NPT, 3/8" NPT, PG9, PG16, M50x1.5, PG11
Type	Cable Gland	Cable Gland

5308 Series

CABLE GLAND, M20 X 1.5, 7 MM, 14 MM, NYLON 6 (POLYAMIDE 6), BLACK, IP68

...

Part	Ingress Protection	Material	Type	Thread Length	Thread Length	Thread Size	Panel Hole Size	Panel Hole Size	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Operating Temperature [custom]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Altech Corporation 5308 942	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	10 mm	0.394 in	M20x1.5	0.787 in	20 mm	Black	14 mm	0.551 "	7 mm	0.276 in	100 °C	-40 °C
Altech Corporation 5308 513	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	9 mm	0.354 in	PG13.5	0.803 in	20.4 mm	Black					100 °C	-40 °C	5 mm	0.197 in	0.472 in	12 mm
Altech Corporation 5308 951/SET	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	10 mm	0.394 in	M16x1.5	0.63 in	16 mm	Gray							3.5 mm	0.138 in	0.394 "	10 mm	Locknut	-25 °C, 100 °C
Altech Corporation 5308 507/SET	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	8 mm	0.315 in	PG7	0.492 in	12.5 mm	Black				0.098 in	100 °C	-40 °C			0.256 "	6.5 mm	Locknut		2.5 mm
Altech Corporation 5308 950	IP68 - Dust Tight, Waterproof		Cable Gland	8 mm	0.315 in	M12x1.5	0.472 in	12 mm	Gray				0.098 in					0.256 "	6.5 mm		-25 °C, 100 °C	2.5 mm
Altech Corporation 5308 905/SET	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	14 mm	0.551 in	1/2" NPT	0.835 in	21.2 mm	Gray				0.118 in	100 °C	-40 °C				0.354 in	Locknut		3 mm	9 mm
Altech Corporation 5308 707/SET	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	8 mm	0.315 in	PG7	0.492 in	12.5 mm	Gray				0.098 in	100 °C	-40 °C			0.256 "	6.5 mm	Locknut		2.5 mm
Altech Corporation 5308 942/SET	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	10 mm	0.394 in	M20x1.5	0.787 in	20 mm	Black	14 mm	0.551 "	7 mm	0.276 in	100 °C	-40 °C					Locknut
Altech Corporation 5308 927/SET	IP68 - Dust Tight, Waterproof		Cable Gland	18.01 mm	0.709 in	1" NPT	1.311 in	33.3 mm	Black				0.433 in	100 °C	-40 °C			0.827 in	21 mm	Locknut		11 mm
Altech Corporation 5308 507	IP68 - Dust Tight, Waterproof	Polyamide (PA), Nylon	Cable Gland	8 mm	0.315 in	PG7	0.492 in	12.5 mm	Black				0.098 in	100 °C	-40 °C			0.256 "	6.5 mm			2.5 mm
