M7VXK-2506J

Active

D-SUB CABLE - MMU25K/MC26G/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MMU25K/MC26G/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

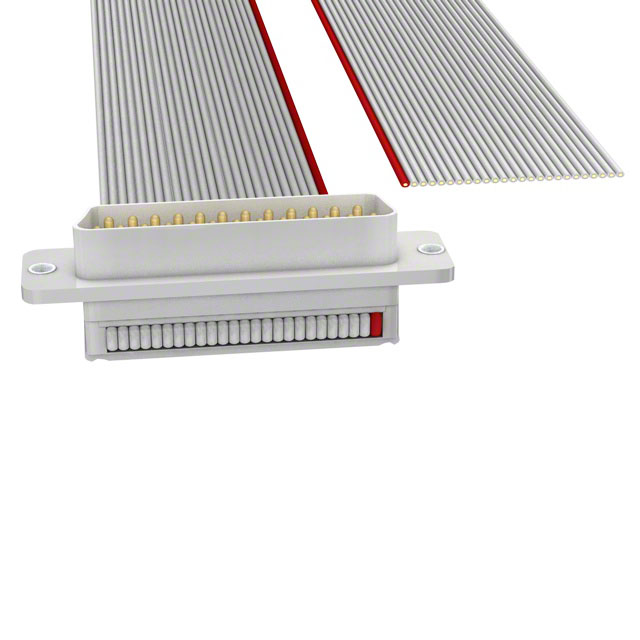

D-Sub Cable Assembly DB25 Gray, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

Part	1st Connector	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Shielding	Length	Length	Color	2nd Connector
3M M7VXK-0910R	Plug, Male Pins	DB9	0.76 Ám	30 Áin	Gold	9	Unshielded	10 ft	3.05 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-0910J	Plug, Male Pins	DB9	0.76 Ám	30 Áin	Gold	9	Unshielded	10 ft	3.05 m		Individual Wire Leads
3M M7VXK-3706J	Plug, Male Pins	DB37	0.76 Ám	30 Áin	Gold	37	Unshielded	6 ft	1.83 m		Individual Wire Leads
3M M7VXK-1506R	Plug, Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	6 ft	1.83 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-2506R	Plug, Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	6 ft	1.83 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-1506J	Plug, Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	6 ft	1.83 m		Individual Wire Leads
3M M7VXK-3710R	Plug, Male Pins	DB37	0.76 Ám	30 Áin	Gold	37	Unshielded	10 ft	3.05 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-2510J	Plug, Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	10 ft	3.05 m		Individual Wire Leads
3M M7VXK-1510R	Plug, Male Pins	DB15	0.76 Ám	30 Áin	Gold	15	Unshielded	10 ft	3.05 m	Multiple, Ribbon	Individual Wire Leads
3M M7VXK-2506J	Plug, Male Pins	DB25	0.76 Ám	30 Áin	Gold		Unshielded	6 ft	1.83 m		Individual Wire Leads
