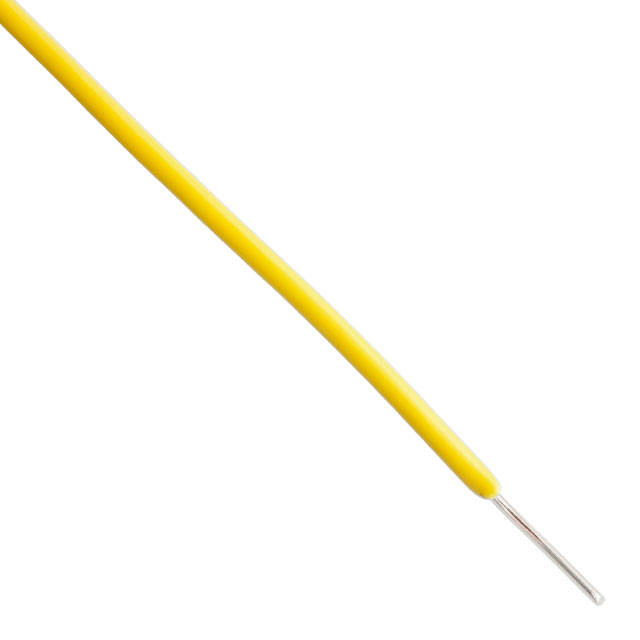

2200/22SYL-100
ActiveDaburn Electronics
HOOK-UP SOLID 22AWG 150V YW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2200/22SYL-100
ActiveDaburn Electronics
HOOK-UP SOLID 22AWG 150V YW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2200/22SYL-100 | 2200/22 Series |
|---|---|---|
| Cable Type | Hook-Up | Hook-Up |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand | Solid | Solid |
| Conductor Strand | - | 7 |
| Conductor Strand | - | 30 AWG |
| Features | Abrasion Resistant | Abrasion Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.054 in | 0.051 - 0.054 in |
| Jacket (Insulation) Diameter [diameter] | 1.37 mm | 1.3 - 1.37 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (XLPVC), Irradiated | Poly-Vinyl Chloride (XLPVC), Irradiated |
| Jacket (Insulation) Thickness | 0.25 mm | 0.25 mm |
| Jacket (Insulation) Thickness | 0.01 in | 0.01 in |
| Jacket Color | Yellow | Yellow, Violet, Gray, Red, Green, Blue, Brown, Orange |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 30.5 m | 30.5 m |
| Length [x] | 100 ft | 100 ft |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Qualification | MIL-W-16878 Type B | MIL-W-16878 Type B |
| Ratings | UL Style 1429 | UL Style 1429 |
| Voltage | 600 V | 600 V |
| Wire Gauge | 22 AWG | 22 AWG |
2200/22 Series
HOOK-UP SOLID 22AWG YELLOW 1000'
| Part | Jacket (Insulation) Material | Qualification | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand | Cable Type | Jacket Color | Conductor Material | Features | Wire Gauge | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Daburn Electronics 2200/22SYL-1000 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.054 in | 1.37 mm | 0.25 mm | 0.01 in | 1000 ft | 304.8 m | 600 V | 105 ░C | -55 °C | Solid | Hook-Up | Yellow | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | ||||
Daburn Electronics 2200/22VI-1000 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.051 in | 1.3 mm | 0.25 mm | 0.01 in | 1000 ft | 304.8 m | 600 V | 105 ░C | -55 °C | Hook-Up | Violet | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 7 | 30 AWG | |||
Daburn Electronics 2200/22SVI-1000 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.054 in | 1.37 mm | 0.25 mm | 0.01 in | 1000 ft | 304.8 m | 600 V | 105 ░C | -55 °C | Solid | Hook-Up | Violet | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | ||||
Daburn Electronics 2200/22GY-1000 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.051 in | 1.3 mm | 0.25 mm | 0.01 in | 1000 ft | 304.8 m | 600 V | 105 ░C | -55 °C | Hook-Up | Gray | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 7 | 30 AWG | |||
Daburn Electronics 2200/22YL-100 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.051 in | 1.3 mm | 0.25 mm | 0.01 in | 600 V | 105 ░C | -55 °C | Hook-Up | Yellow | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 7 | 30 AWG | 30.5 m | 100 ft | |||
Daburn Electronics 2200/22SRD-100 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.054 in | 1.37 mm | 0.25 mm | 0.01 in | 600 V | 105 ░C | -55 °C | Solid | Hook-Up | Red | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 30.5 m | 100 ft | ||||
Daburn Electronics 2200/22GR-100 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.051 in | 1.3 mm | 0.25 mm | 0.01 in | 600 V | 105 ░C | -55 °C | Hook-Up | Green | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 7 | 30 AWG | 30.5 m | 100 ft | |||
Daburn Electronics 2200/22SVI-100 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.054 in | 1.37 mm | 0.25 mm | 0.01 in | 600 V | 105 ░C | -55 °C | Solid | Hook-Up | Violet | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 30.5 m | 100 ft | ||||
Daburn Electronics 2200/22SBU-1001 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.054 in | 1.37 mm | 0.25 mm | 0.01 in | 1000 ft | 304.8 m | 600 V | 105 ░C | -55 °C | Solid | Hook-Up | Blue | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | ||||
Daburn Electronics 2200/22SWH-100 | Poly-Vinyl Chloride (XLPVC), Irradiated | MIL-W-16878 Type B | 0.054 in | 1.37 mm | 0.25 mm | 0.01 in | 600 V | 105 ░C | -55 °C | Solid | Hook-Up | Copper, Tinned | Abrasion Resistant | 22 AWG | UL Style 1429 | 30.5 m | 100 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 0.31 | |
| 200 | $ 0.29 | |||
| 300 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| 700 | $ 0.27 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.24 | |||
| 5000 | $ 0.23 | |||
| 10000 | $ 0.22 | |||
Description
General part information
2200/22 Series
22 AWG Hook-Up Wire Solid Yellow 600V 100.0' (30.5m)
