2200/22SRD-100

Active

Daburn Electronics

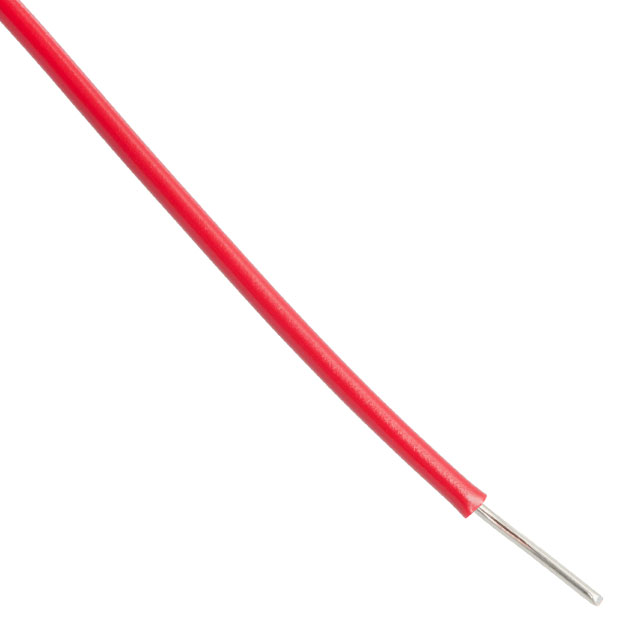

HOOK-UP SOLID 22AWG RED 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2200/22SRD-100

Active

Daburn Electronics

HOOK-UP SOLID 22AWG RED 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2200/22SRD-100	2200/22 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	Solid	Solid
Conductor Strand	-	7
Conductor Strand	-	30 AWG
Features	Abrasion Resistant	Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.054 in	0.051 - 0.054 in
Jacket (Insulation) Diameter [diameter]	1.37 mm	1.3 - 1.37 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.25 mm	0.25 mm
Jacket (Insulation) Thickness	0.01 in	0.01 in
Jacket Color	Red	Yellow, Violet, Gray, Red, Green, Blue, Brown, Orange
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Qualification	MIL-W-16878 Type B	MIL-W-16878 Type B
Ratings	UL Style 1429	UL Style 1429
Voltage	600 V	600 V
Wire Gauge	22 AWG	22 AWG

2200/22 Series

HOOK-UP SOLID 22AWG YELLOW 1000'

Part	Jacket (Insulation) Material	Qualification	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Cable Type	Jacket Color	Conductor Material	Features	Wire Gauge	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Daburn Electronics 2200/22SYL-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C	Solid	Hook-Up	Yellow	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429
Daburn Electronics 2200/22VI-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C		Hook-Up	Violet	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG
Daburn Electronics 2200/22SVI-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C	Solid	Hook-Up	Violet	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429
Daburn Electronics 2200/22GY-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C		Hook-Up	Gray	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG
Daburn Electronics 2200/22YL-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C		Hook-Up	Yellow	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG	30.5 m	100 ft
Daburn Electronics 2200/22SRD-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C	Solid	Hook-Up	Red	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429			30.5 m	100 ft
Daburn Electronics 2200/22GR-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C		Hook-Up	Green	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG	30.5 m	100 ft
Daburn Electronics 2200/22SVI-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C	Solid	Hook-Up	Violet	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429			30.5 m	100 ft
Daburn Electronics 2200/22SBU-1001	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C	Solid	Hook-Up	Blue	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429
Daburn Electronics 2200/22SWH-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C	Solid	Hook-Up		Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429			30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 31.49
		2	$ 29.98
		3	$ 29.13
		5	$ 28.08
		7	$ 27.41
		10	$ 26.72
		25	$ 25.00
		50	$ 23.77
		100	$ 22.58

Description

General part information

2200/22 Series

22 AWG Hook-Up Wire Solid Red 600V 100.0' (30.5m)
