010832WF018

Active

Essentra Components

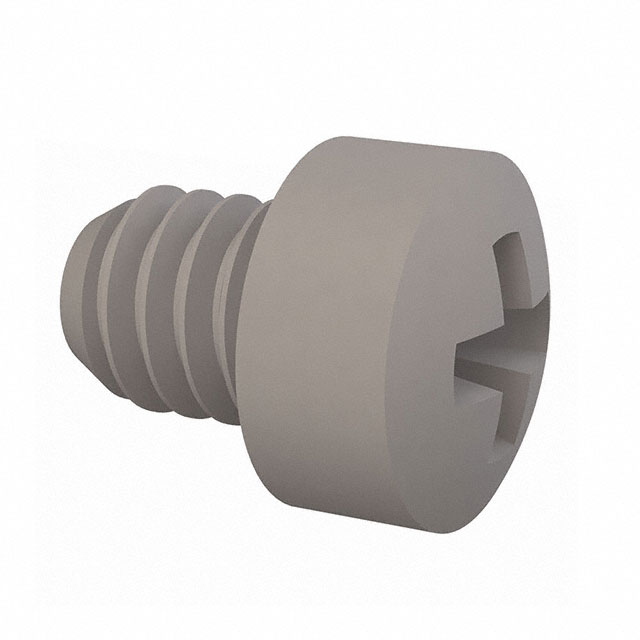

FILLISTER PHILLIPS SCREW 8-32

Deep-Dive with AI

Search across all available documentation for this part.

010832WF018

Active

Essentra Components

FILLISTER PHILLIPS SCREW 8-32

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.05

Description

General part information

010832WF Series

#8-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	010832WF018	010832WF Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	6.6 mm	6.6 mm
Head Diameter [diameter]	0.26 in	0.26 in
Head Height	7.34 mm	7.34 mm
Head Height	0.289 "	0.289 "
Length - Below Head	-	0.875 - 38.1 in
Length - Below Head	-	0.25 - 22.23 mm
Length - Below Head	-	0.25 - 1 in
Length - Below Head	-	7.94 mm
Length - Below Head	-	0.313 in
Length - Below Head [x]	4.76 mm	4.76 - 50.8 mm
Length - Below Head [x]	0.188 in	0.188 - 2 in
Length - Overall	-	39.09 mm
Length - Overall [x]	0.476 "	0.476 - 1.789 in
Length - Overall [x]	12.1 mm	12.1 - 45.44 mm
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#8-32	#8-32
Type	Machine Screw	Machine Screw

010832WF Series

FILLISTER PHILLIPS SCREW 8-32

Part	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Type	Head Height	Head Height	Drive Type	Thread Size	Material	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Length - Overall	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head [custom]	Length - Below Head [custom]
Essentra Components 010832WF087	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon	0.875 in	22.23 mm	0.875 in
Essentra Components 010832WF125	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon			1.25 in	31.75 mm	39.09 mm	1.539 in
Essentra Components 010832WF200	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon			2 in	50.8 mm
Essentra Components 010832WF100	Pan Head	6.6 mm	0.26 in	Machine Screw			Phillips	#8-32	Nylon	25.4 mm					1.289 in	32.74 mm	1 in
Essentra Components 010832WF112	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon			1.125 in	28.58 mm		1.414 "	35.92 mm
Essentra Components 010832WF175	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon			1.75 in	44.45 mm
Essentra Components 010832WF031	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon									7.94 mm	0.313 in
Essentra Components 010832WF025	Pan Head	6.6 mm	0.26 in	Machine Screw			Phillips	#8-32	Nylon	6.35 mm	0.25 in				0.539 in	13.69 mm	0.25 in
Essentra Components 010832WF028	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon						0.57 in	14.48 mm
Essentra Components 010832WF018	Pan Head	6.6 mm	0.26 in	Machine Screw	7.34 mm	0.289 "	Phillips	#8-32	Nylon			0.188 in	4.76 mm		0.476 "	12.1 mm
