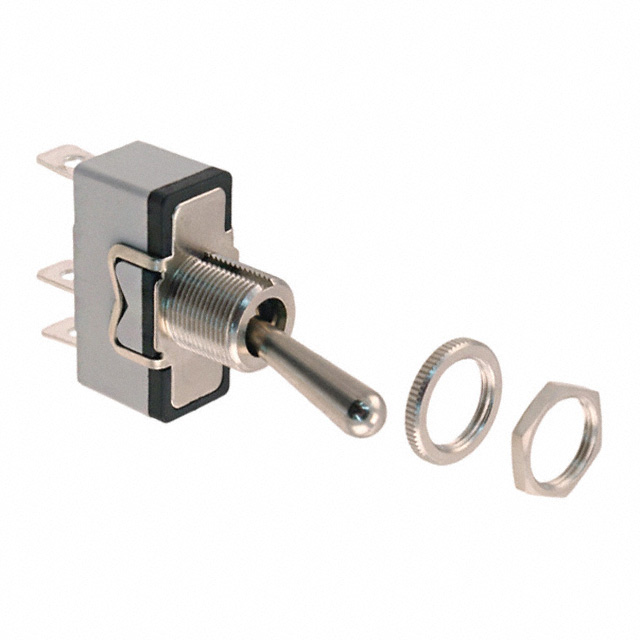

636H/2
ActiveAPEM
SWITCH TOGGLE SPDT 15A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
636H/2
ActiveAPEM
SWITCH TOGGLE SPDT 15A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 636H/2 |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 0.75 |
| Circuit | SPDT |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.29 | |
| 10 | $ 10.61 | |||
| 25 | $ 10.00 | |||
| 50 | $ 9.57 | |||
| 100 | $ 9.15 | |||
| 250 | $ 8.62 | |||
| 500 | $ 8.25 | |||
| 1000 | $ 7.88 | |||
Description
General part information
636H Series
Toggle Switch SPDT Panel Mount
