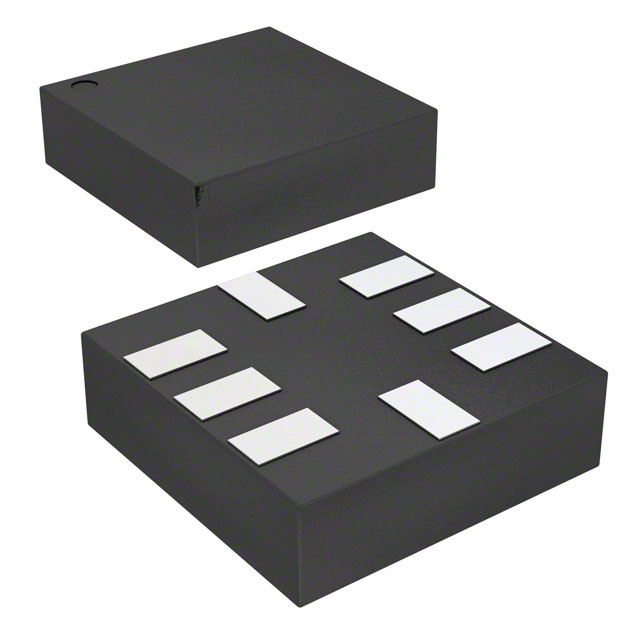

LIS2L06AL

Obsolete

STMicroelectronics

ACCELEROMETER 2-6G ANALOG 8LGA

Search across all available documentation for this part.

Obsolete

STMicroelectronics

ACCELEROMETER 2-6G ANALOG 8LGA

Technical Specifications

Parameters and characteristics for this part

Specification	LIS2L06AL

Acceleration Range [Max]	6 g, 2 g
Acceleration Range [Min]	-2 g
Axis [x]	X
Axis [y]	Y
Bandwidth	2 kHz
Features	Adjustable Bandwidth, Selectable Scale
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Analog Voltage
Package / Case	8-LLGA
Sensitivity (mV/g)	220 mV/g, 660 mV/g
Supplier Device Package	8-LGA
Type	Analog
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	2.4 V

Part	Sensitivity (mV/g)	Bandwidth	Acceleration Range [Max]	Acceleration Range [Min]	Output Type	Axis [y]	Axis [x]	Mounting Type	Type	Features	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case [custom]
STMicroelectronics LIS2L06AL	220 mV/g 660 mV/g	2 kHz	2 g 6 g	-2 g	Analog Voltage	Y	X	Surface Mount	Analog	Adjustable Bandwidth Selectable Scale	8-LLGA	5.25 V	2.4 V	8-LGA	85 °C	-40 °C
STMicroelectronics LIS2L02AS4	220 mV/g 660 mV/g	1.5 kHz	2 g 6 g	-2 g	Analog Voltage	Y	X	Surface Mount	Analog	Adjustable Bandwidth Selectable Scale	24-SOIC	5.25 V	2.4 V	24-SO	85 °C	-40 °C	7.5 mm	0.295 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y Axis ±2g, 6g 2kHz 8-LGA

Technical documentation and resources

No documents available
