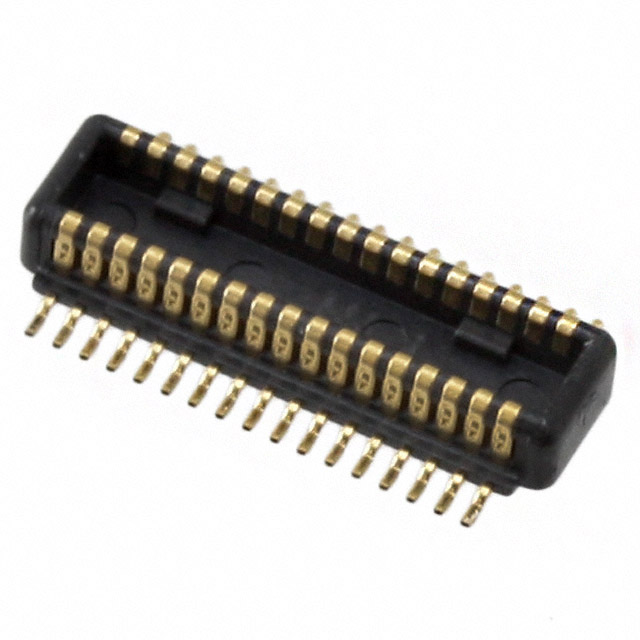

AXK834145WG - AXK834145WG

AXK834145WG

Obsolete
Panasonic Electric Works

CONN HDR 34POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetConnectors SMD-Technical Info+1
AXK834145WG - AXK834145WG

AXK834145WG

Obsolete
Panasonic Electric Works

CONN HDR 34POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheetConnectors SMD-Technical Info+1

Technical Specifications

Parameters and characteristics for this part

SpecificationAXK834145WG
Connector TypeHeader, Outer Shroud Contacts
Contact FinishGold
Height Above Board0.052 in
Height Above Board1.32 mm
Mated Stacking Heights1.5 mm, 2 mm, 2.5 mm
Mounting TypeSurface Mount
Number of Positions34
Number of Rows2
Pitch [x]0.016 in
Pitch [x]0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.88
10$ 1.64
25$ 1.57
50$ 1.53
100$ 1.46
250$ 1.32
500$ 1.22
Digi-Reel® 1$ 1.88
10$ 1.64
25$ 1.57
50$ 1.53
100$ 1.46
250$ 1.32
500$ 1.22

Description

General part information

AXK834 Series

34 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
