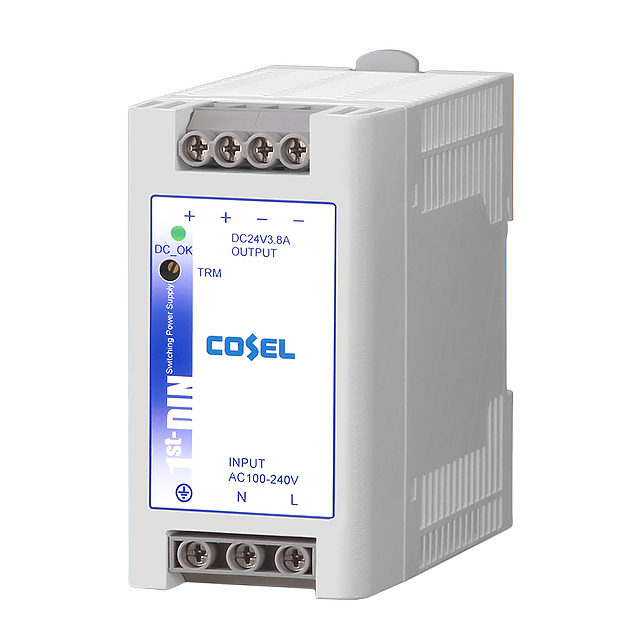

Specification	KHEA90F-24-E

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, cULus, CE, cURus
Current - Output (Max)	3.8 A
Efficiency	91 %
Features	Universal Input, Adjustable Output
Input Type	AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	90 W
Size / Dimension Height	3.54 in
Size / Dimension Length	3.72 in
Size / Dimension Width	1.97 in
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

KHEA90F Series

Part	Applications	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Features	Approval Agency	AC Voltage - Input (Max)	AC Voltage - Input (Min)	Voltage - Output 1	Voltage - Isolation	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Input Type	Power (Watts)	Number of Outputs	Current - Output (Max)
Cosel USA, Inc. KHEA90F-24-E	ITE (Commercial)	91 %	70 °C	-20 °C	Adjustable Output Universal Input	CE cULus cURus TUV	264 VAC	85 VAC	24 V	3 kV	3.72 in	3.54 in	1.97 in	AC	90 W	1	3.8 A
Cosel USA, Inc. KHEA90F-12	ITE (Commercial)	88 %	70 °C	-20 °C	Adjustable Output Universal Input	CE cURus TUV	264 VAC	85 VAC	12 V	3 kV	3.72 in	3.54 in	1.97 in	AC	90 W	1	6.8 A
